Watson Heirloom
March 15, 2024
A project to build a 3D-printed "Telemetry Receiver Module" for the Apex Legends character "Watson".
Table of Contents

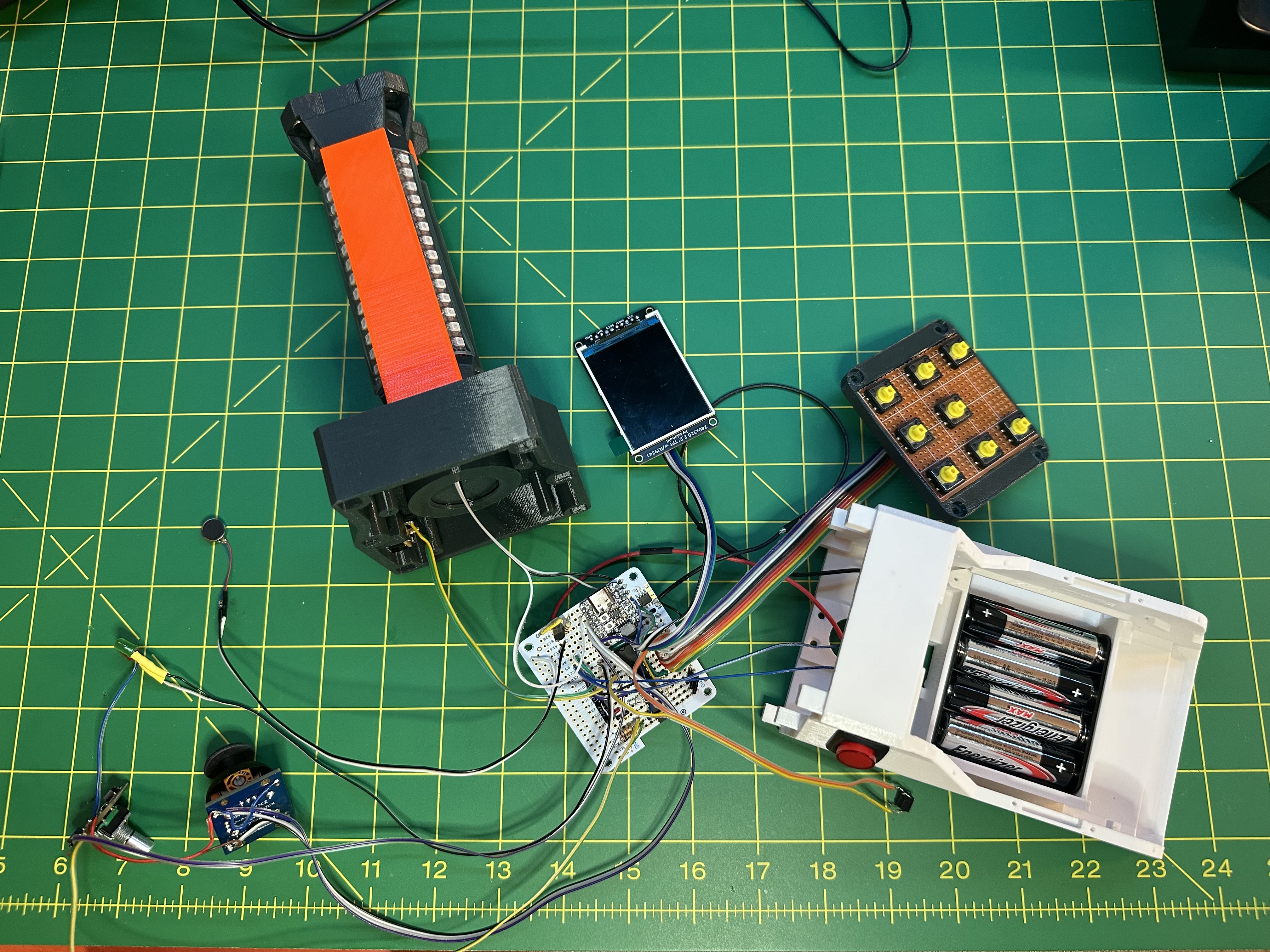

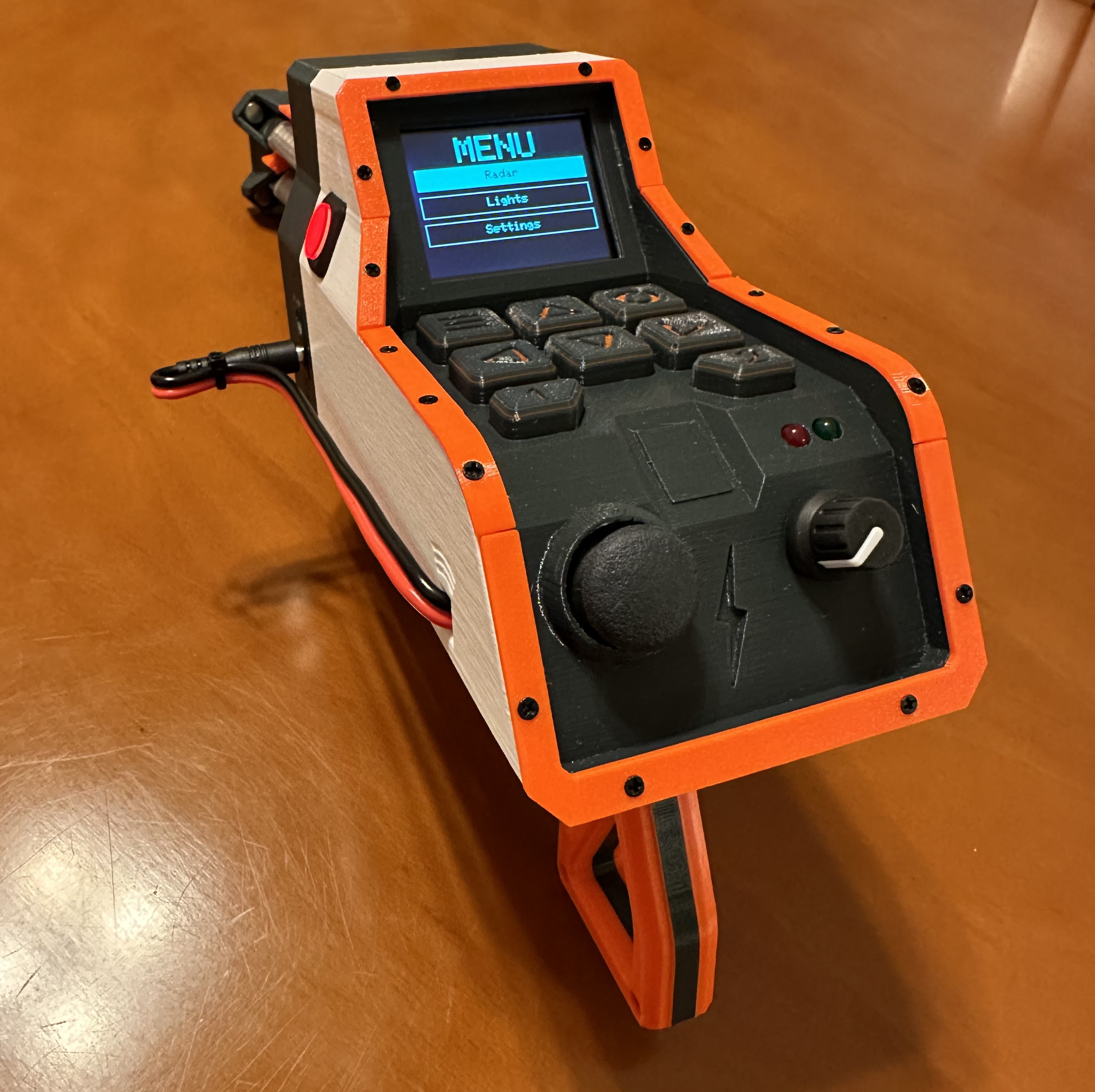

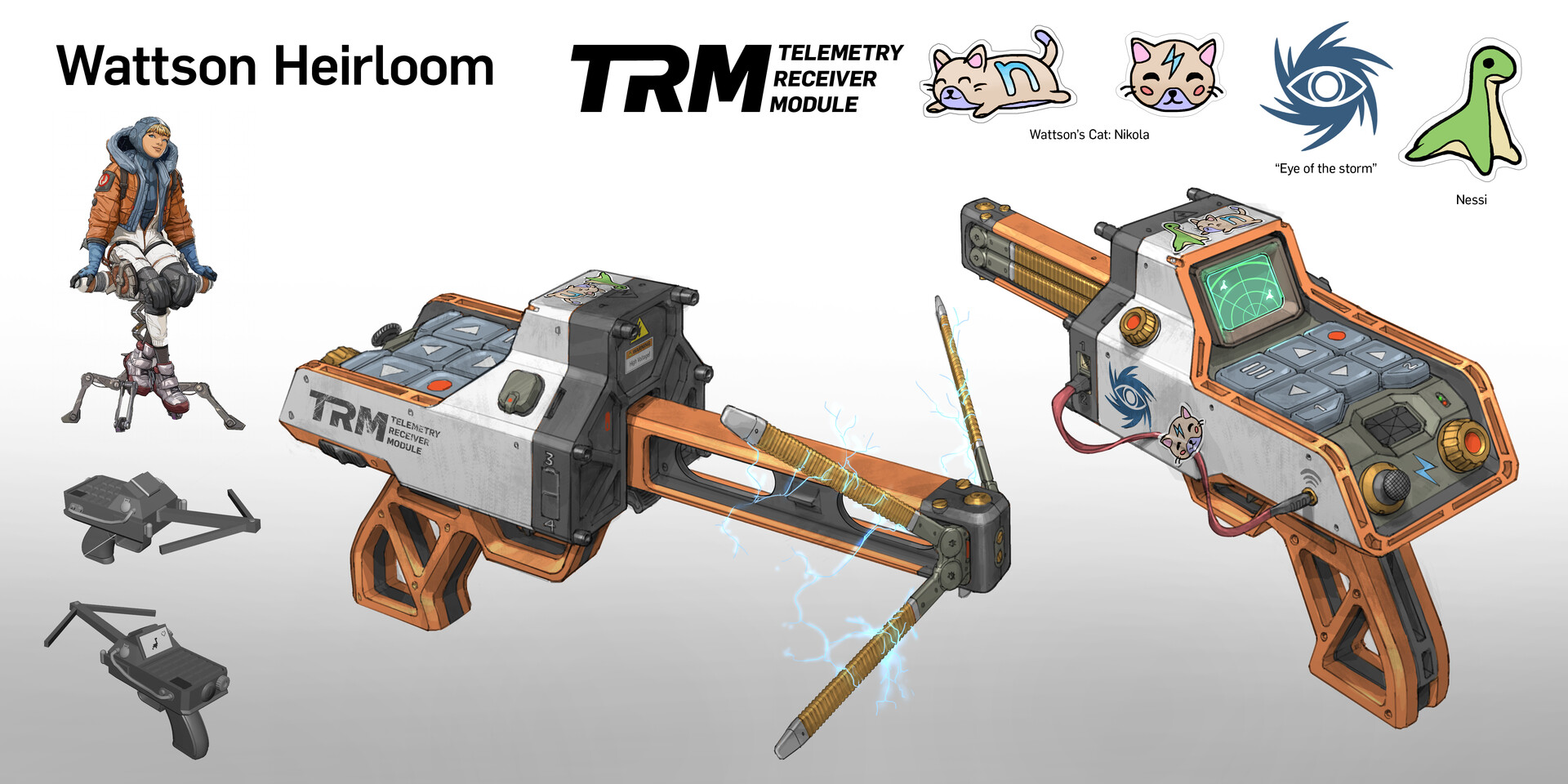

Wattson is a character from the video game Apex Legends. This is a project to build a 3D-printed version of her "Telemetry Receiver Module" Heirloom, with functioning electronics (not a real radar, thought).

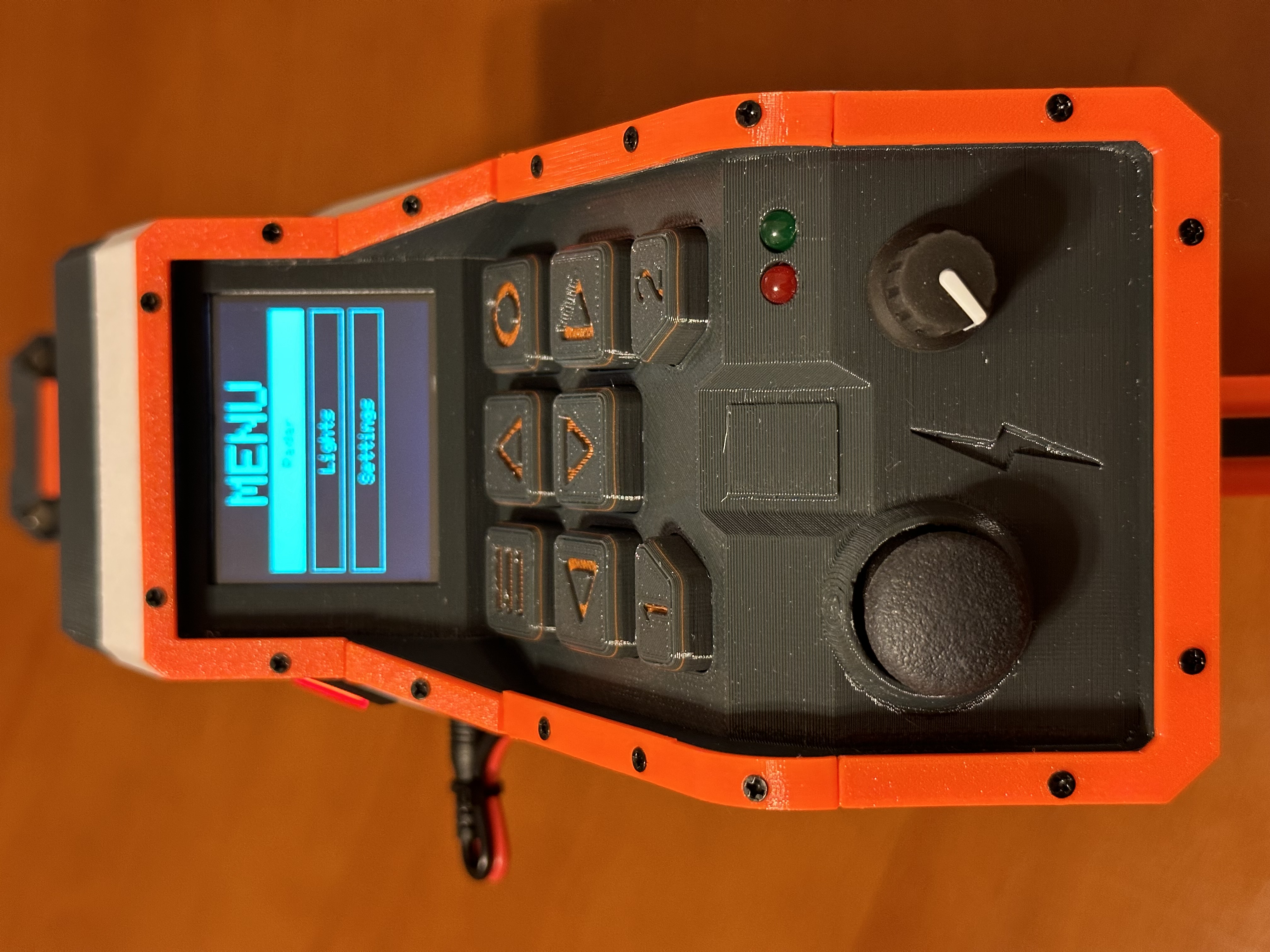

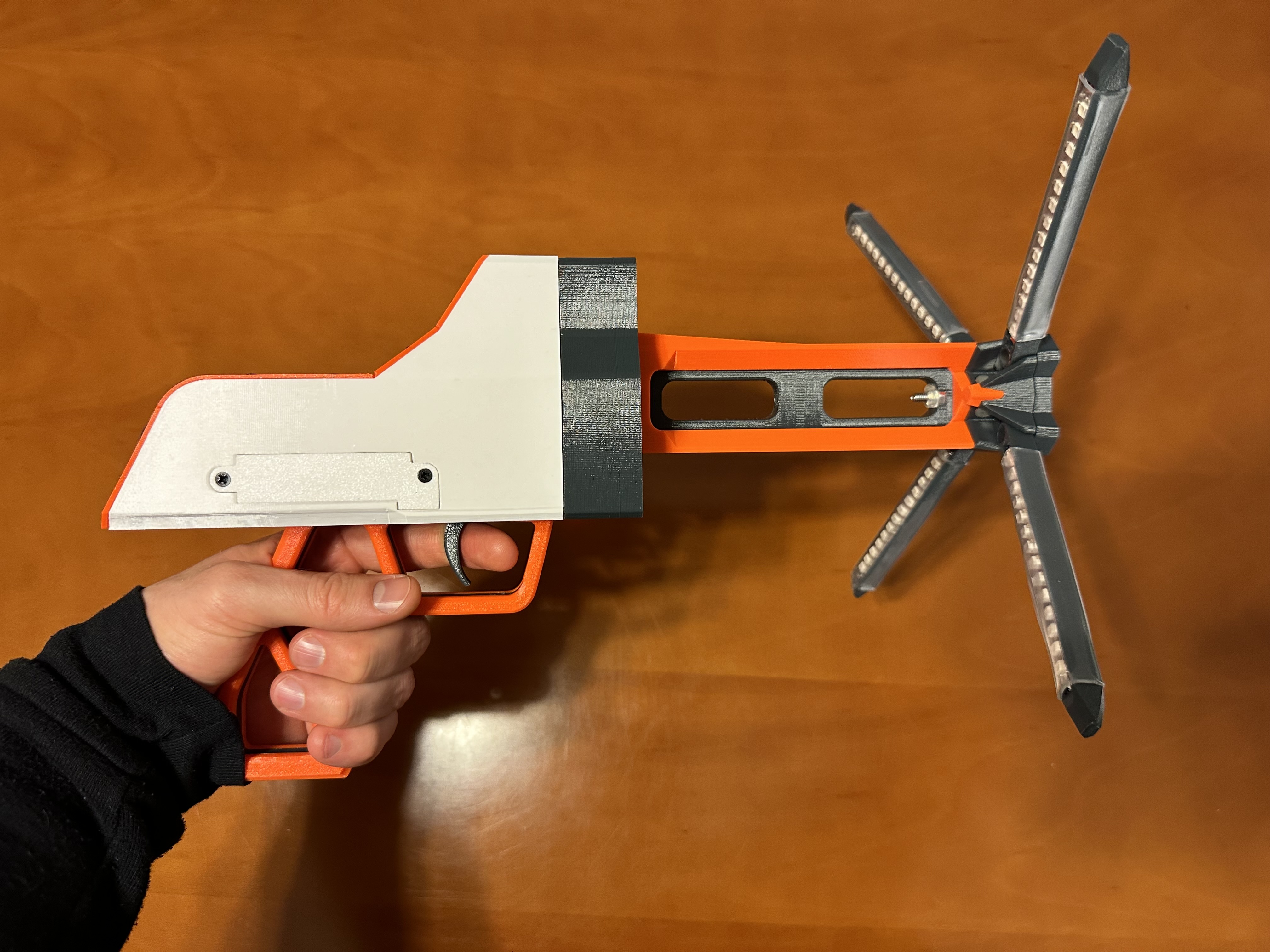

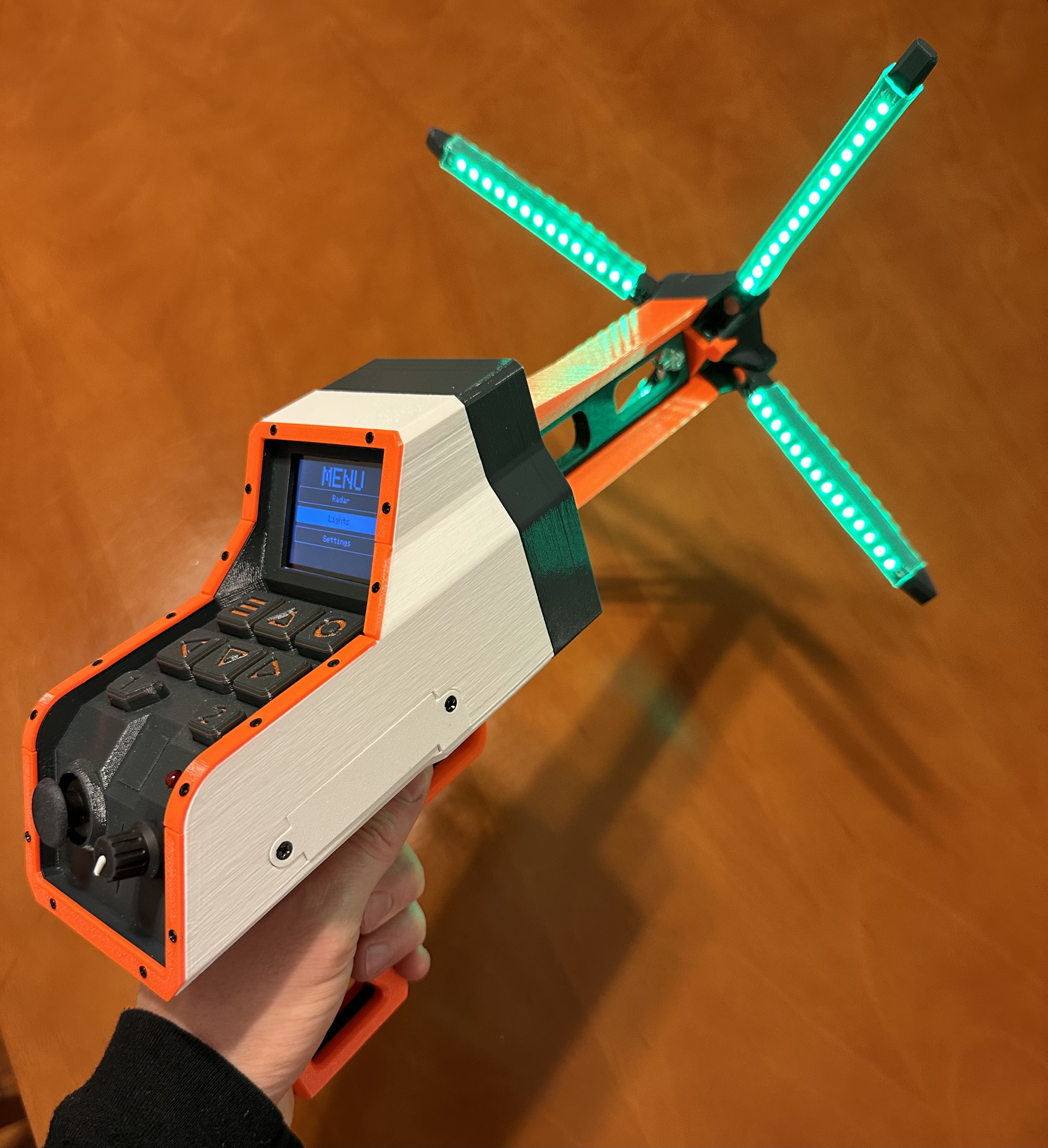

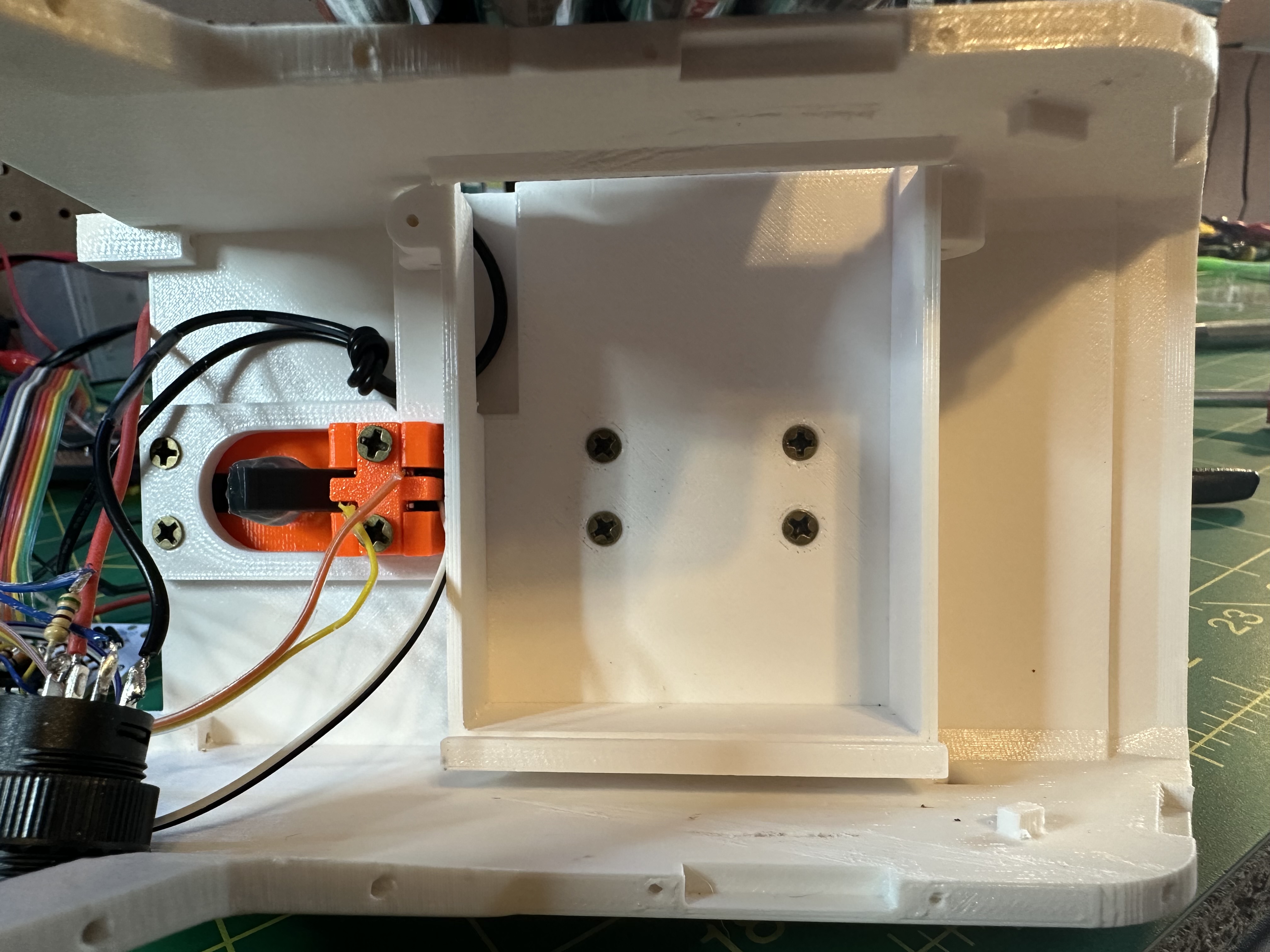

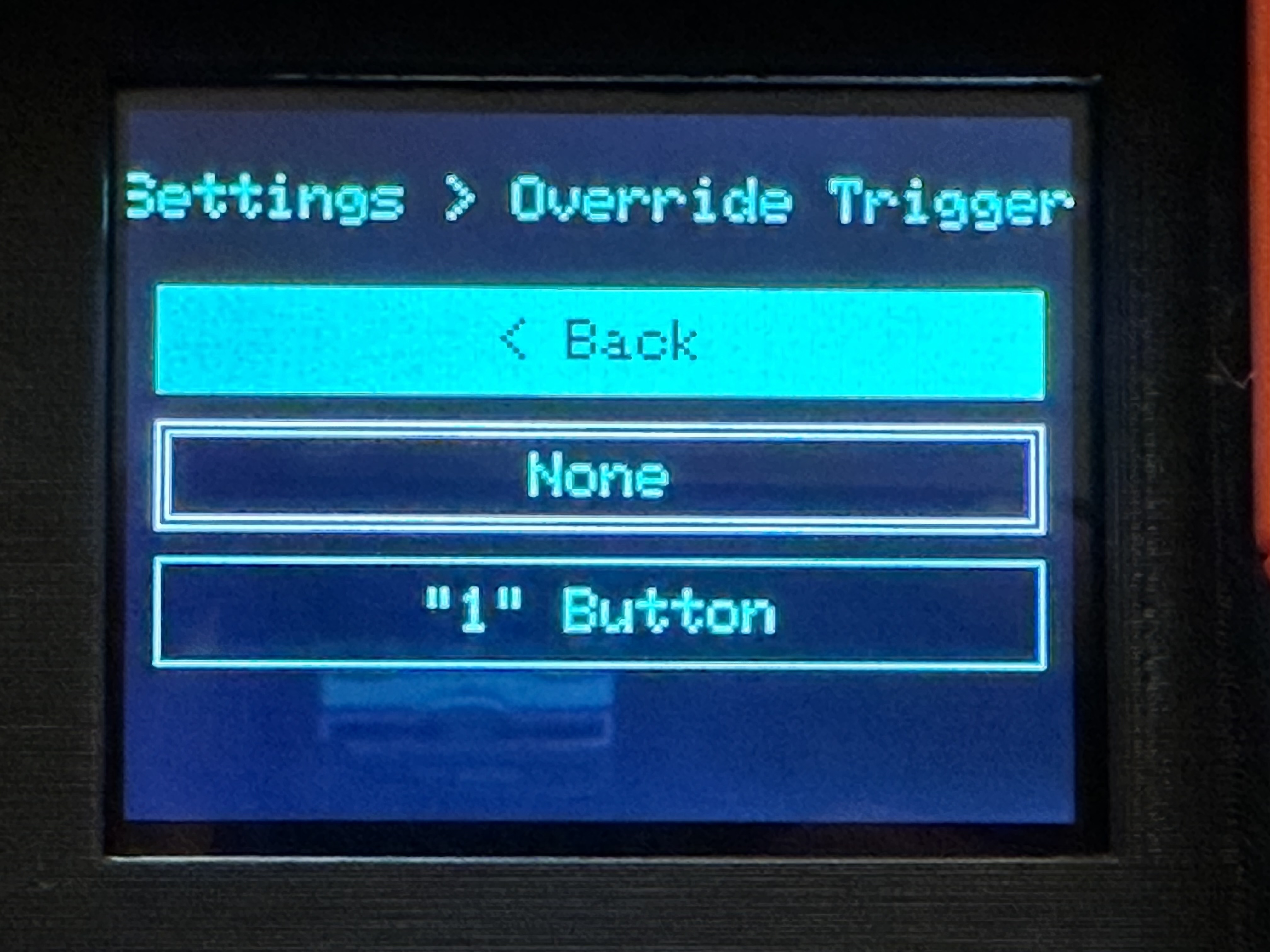

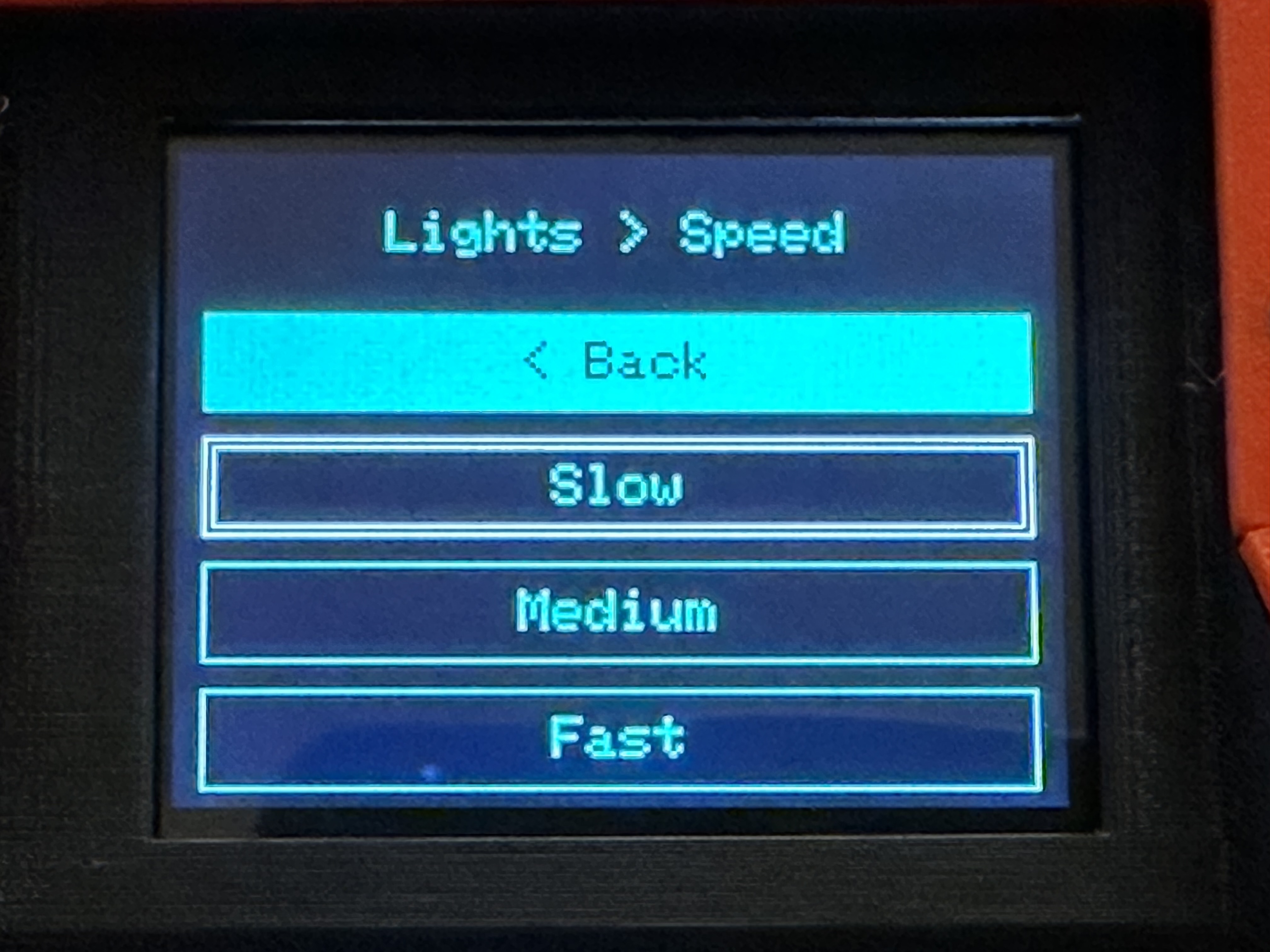

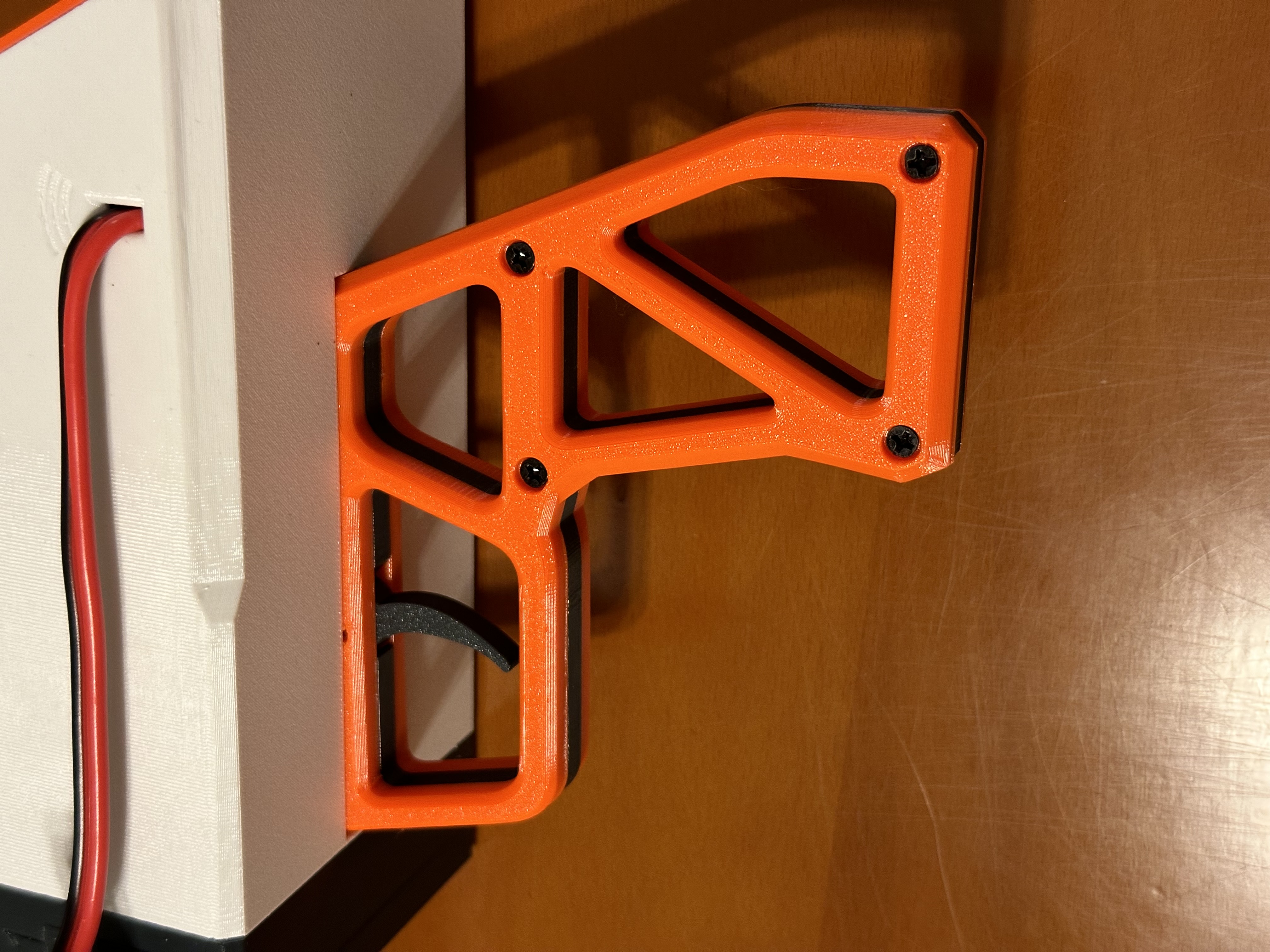

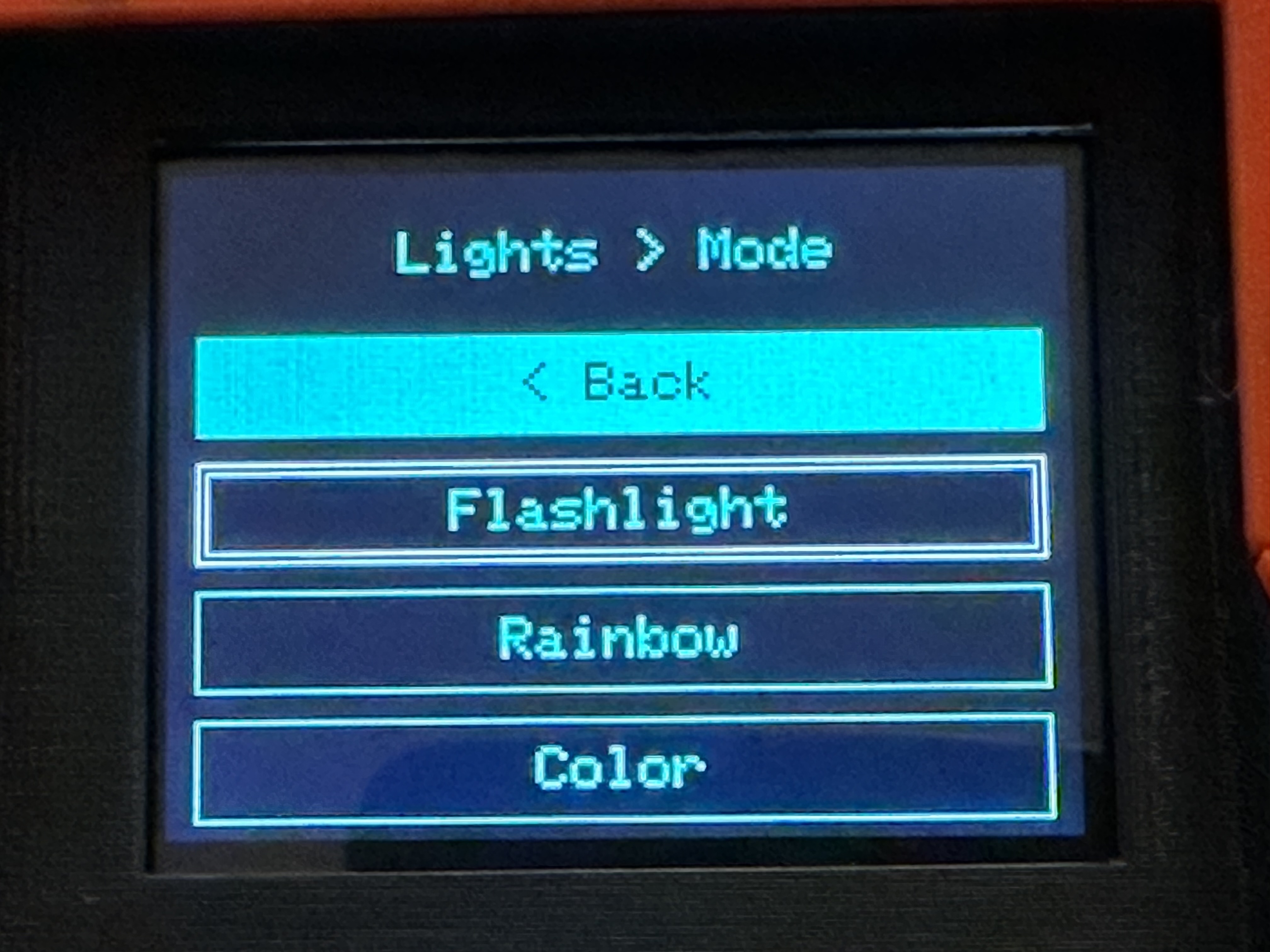

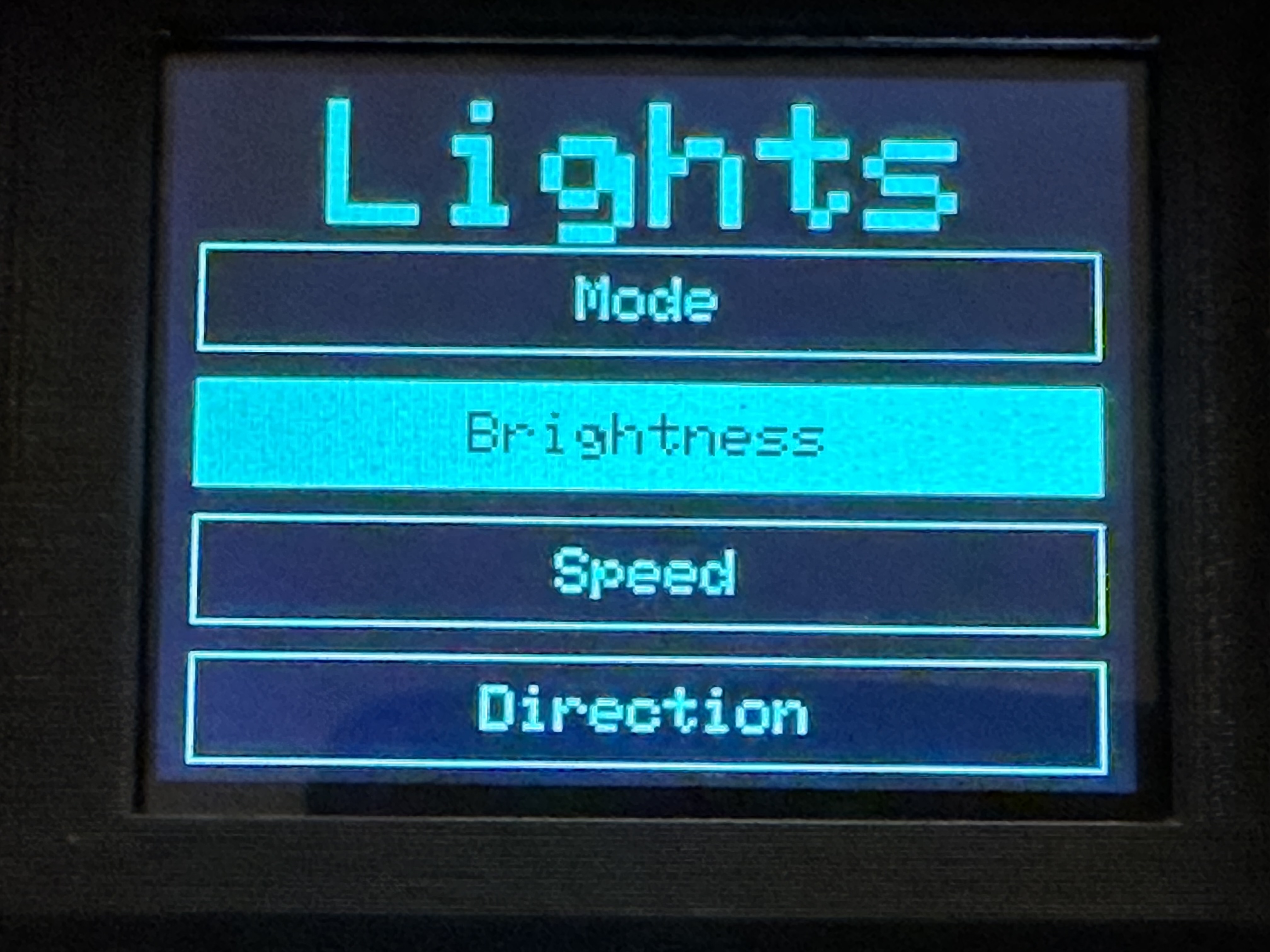

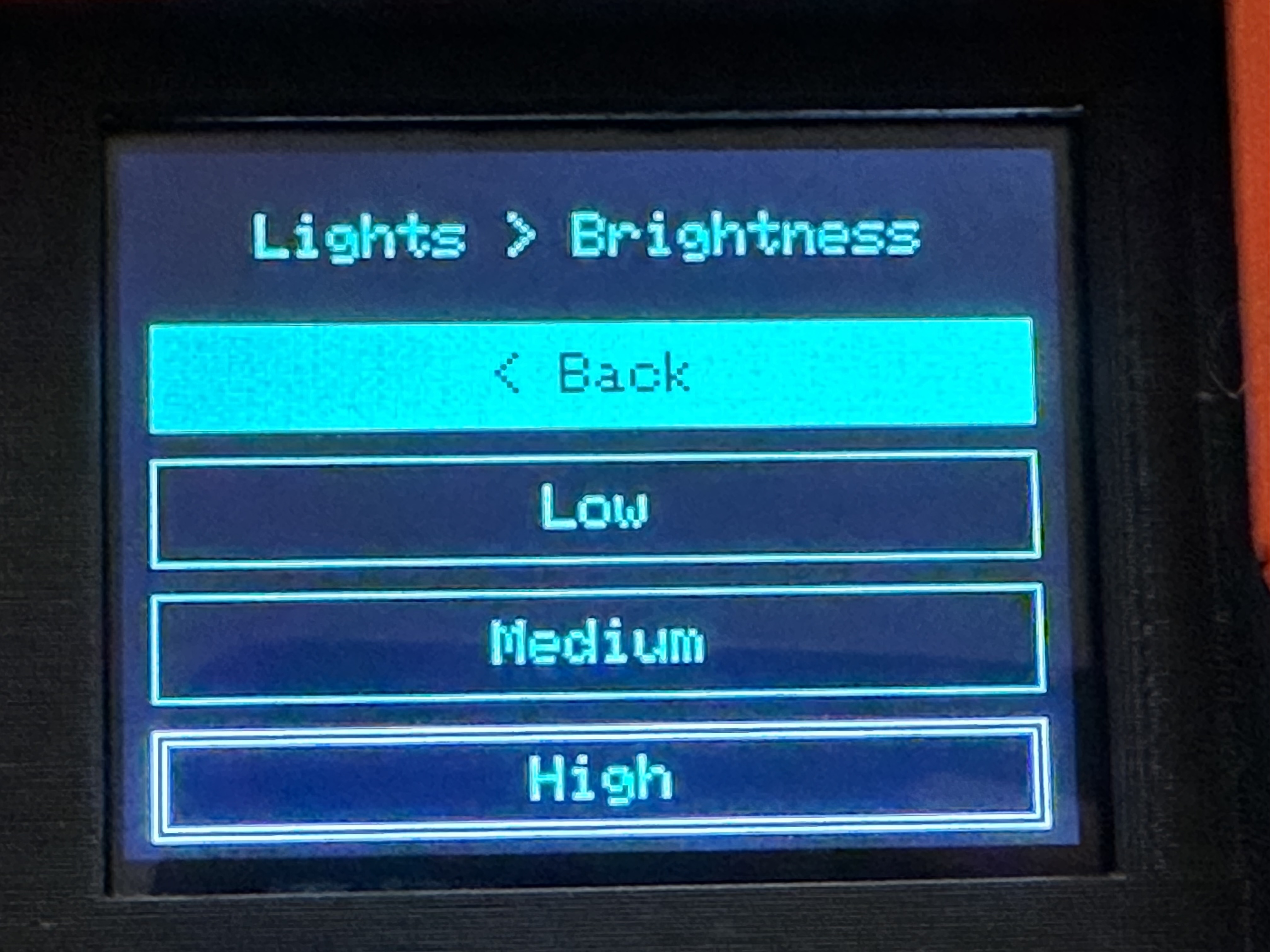

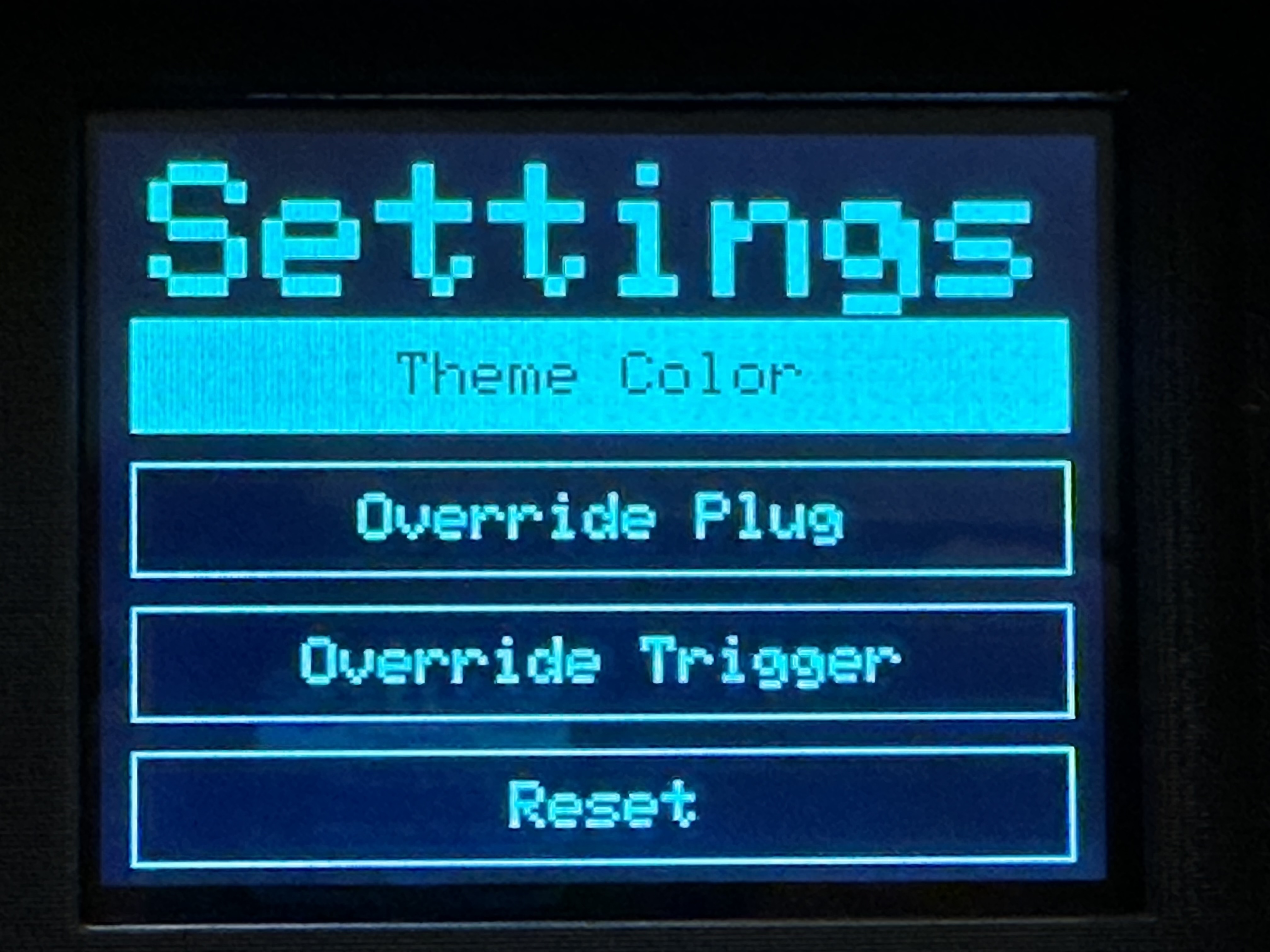

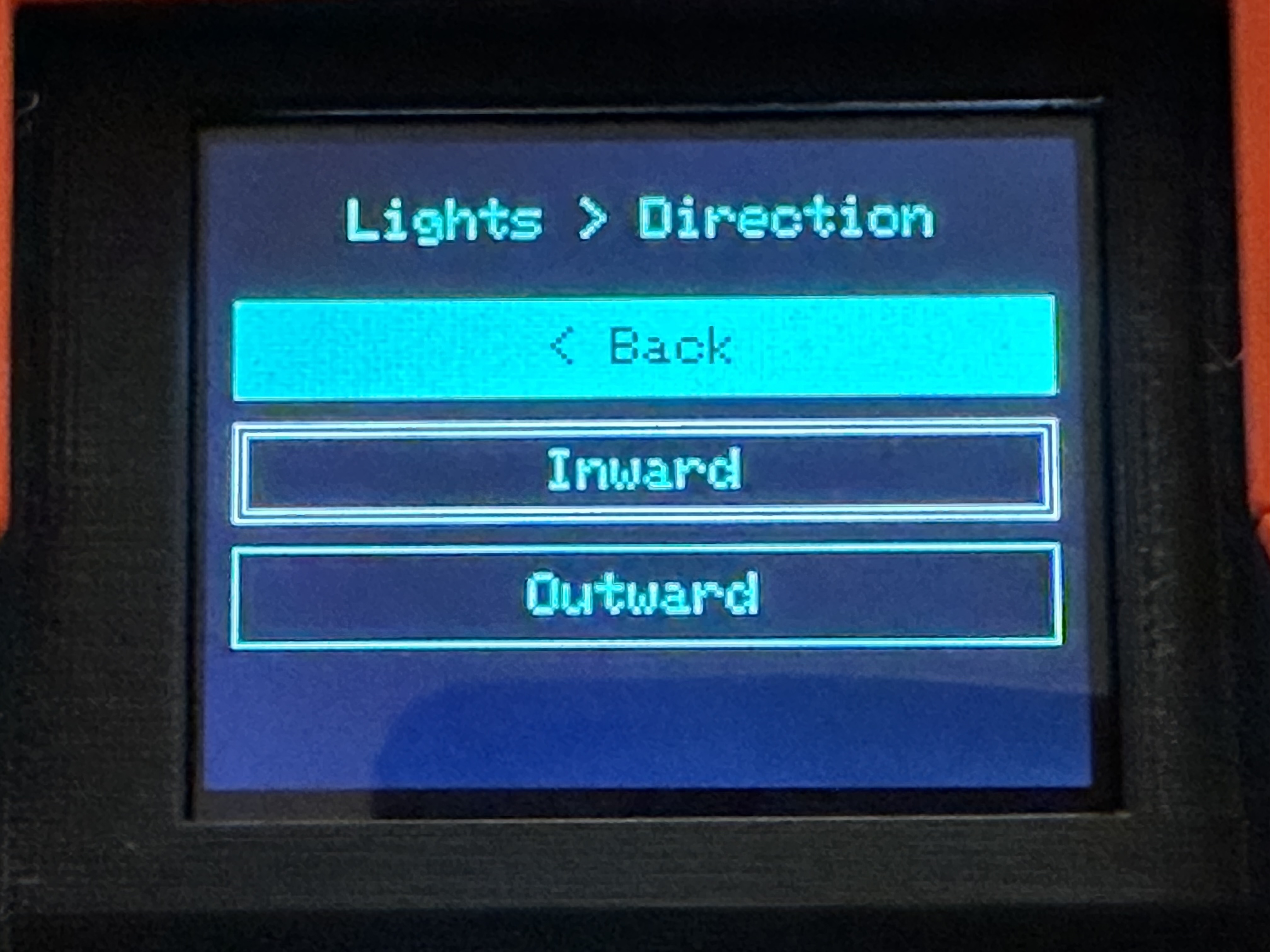

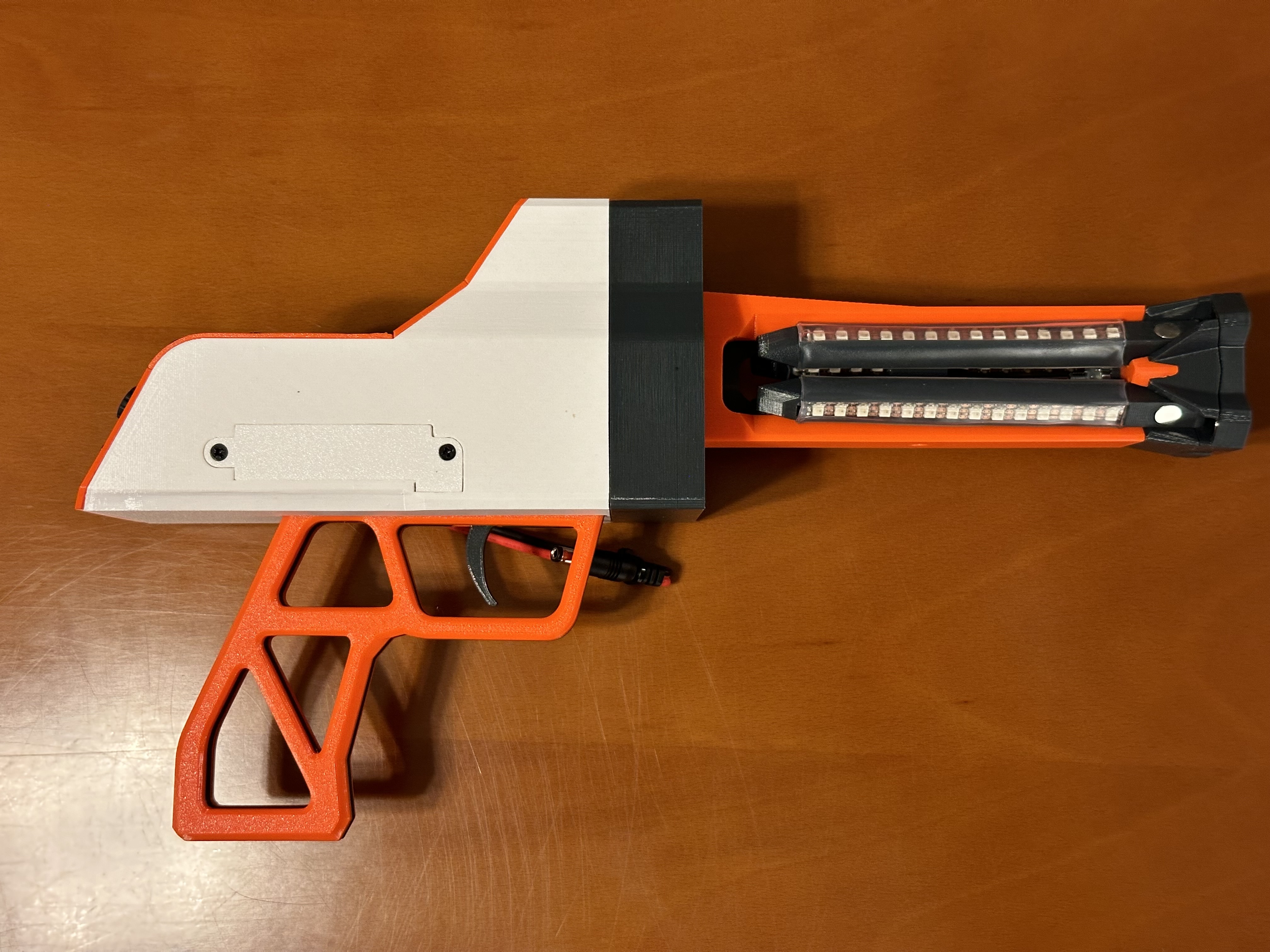

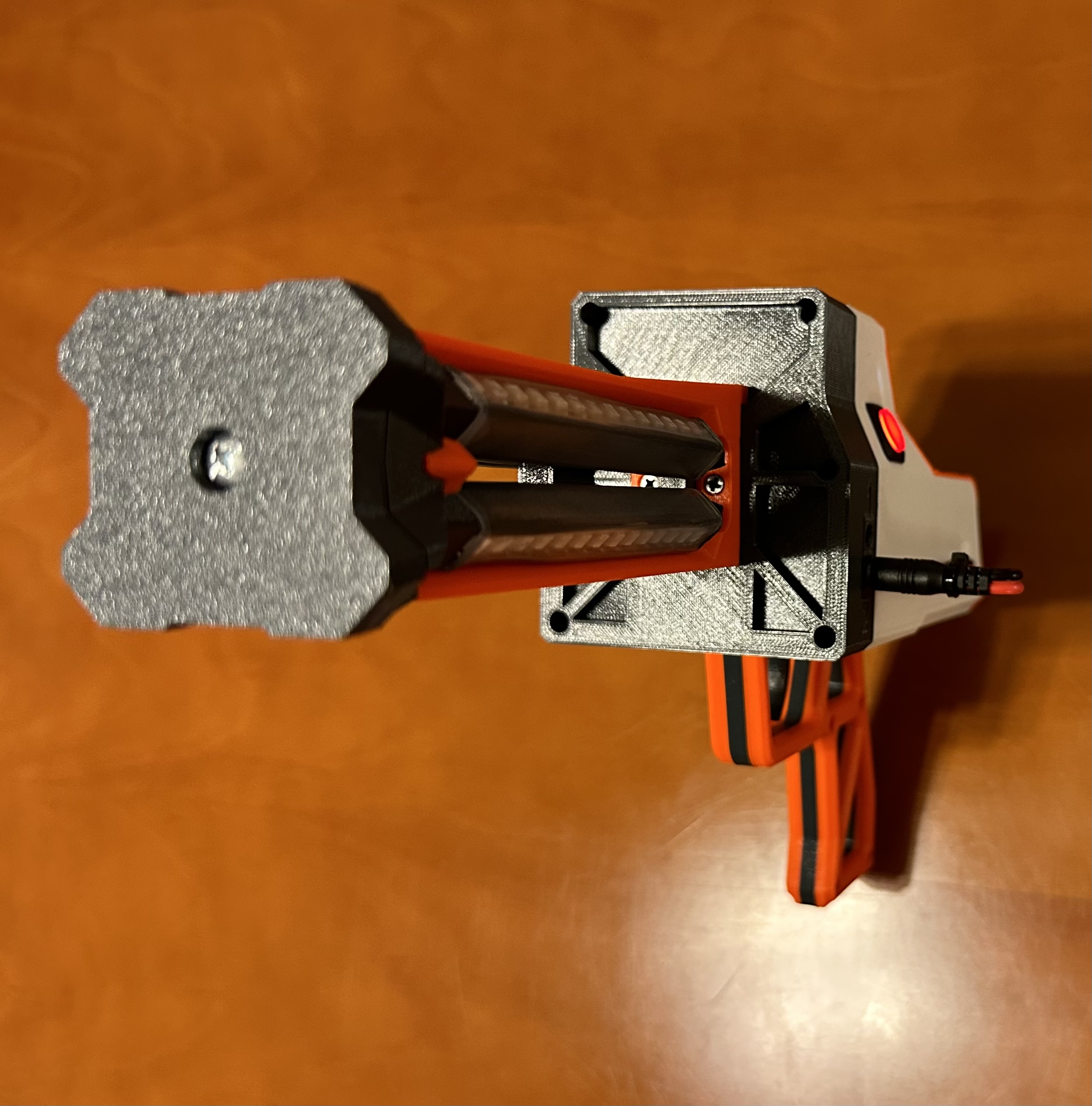

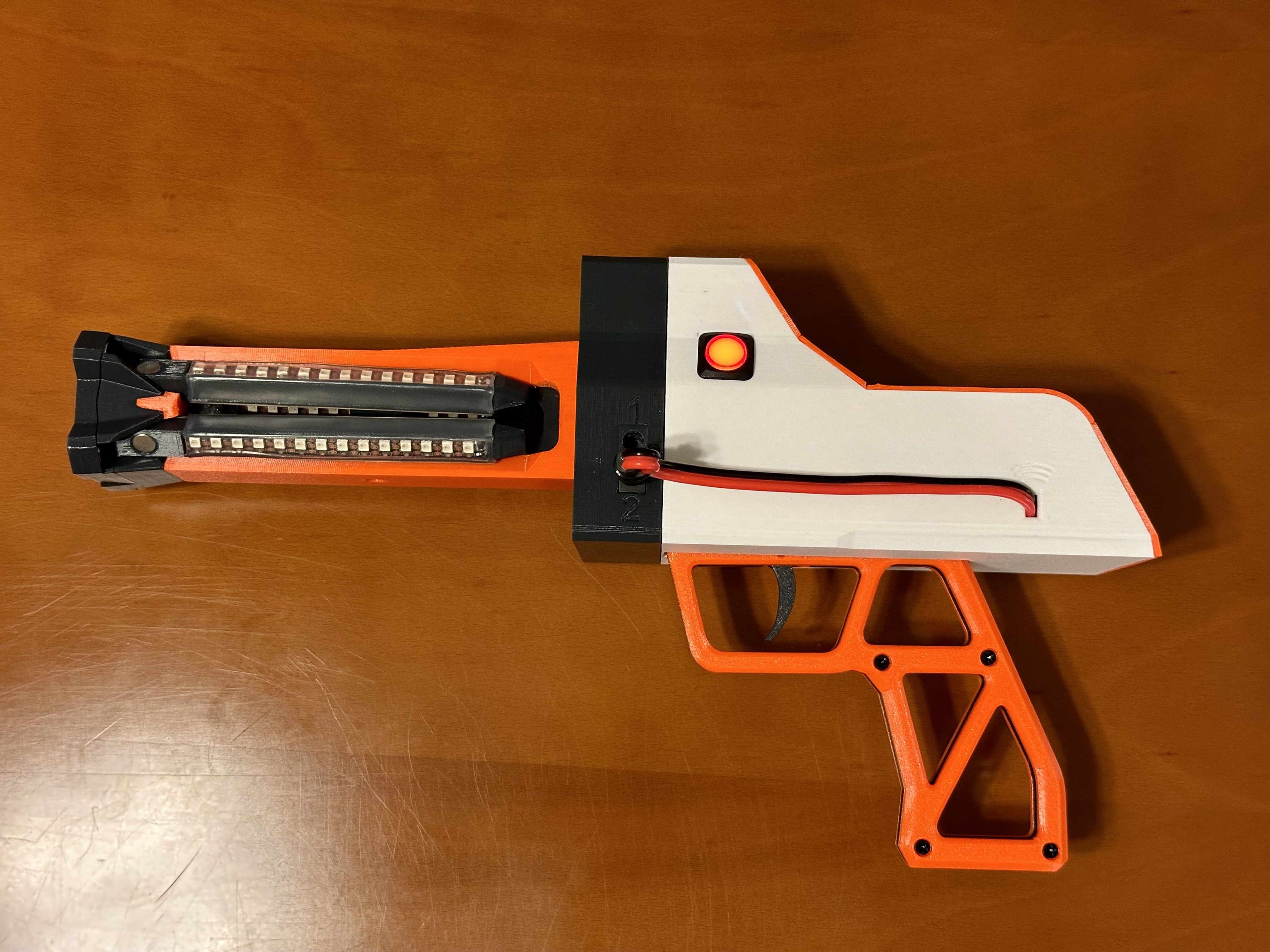

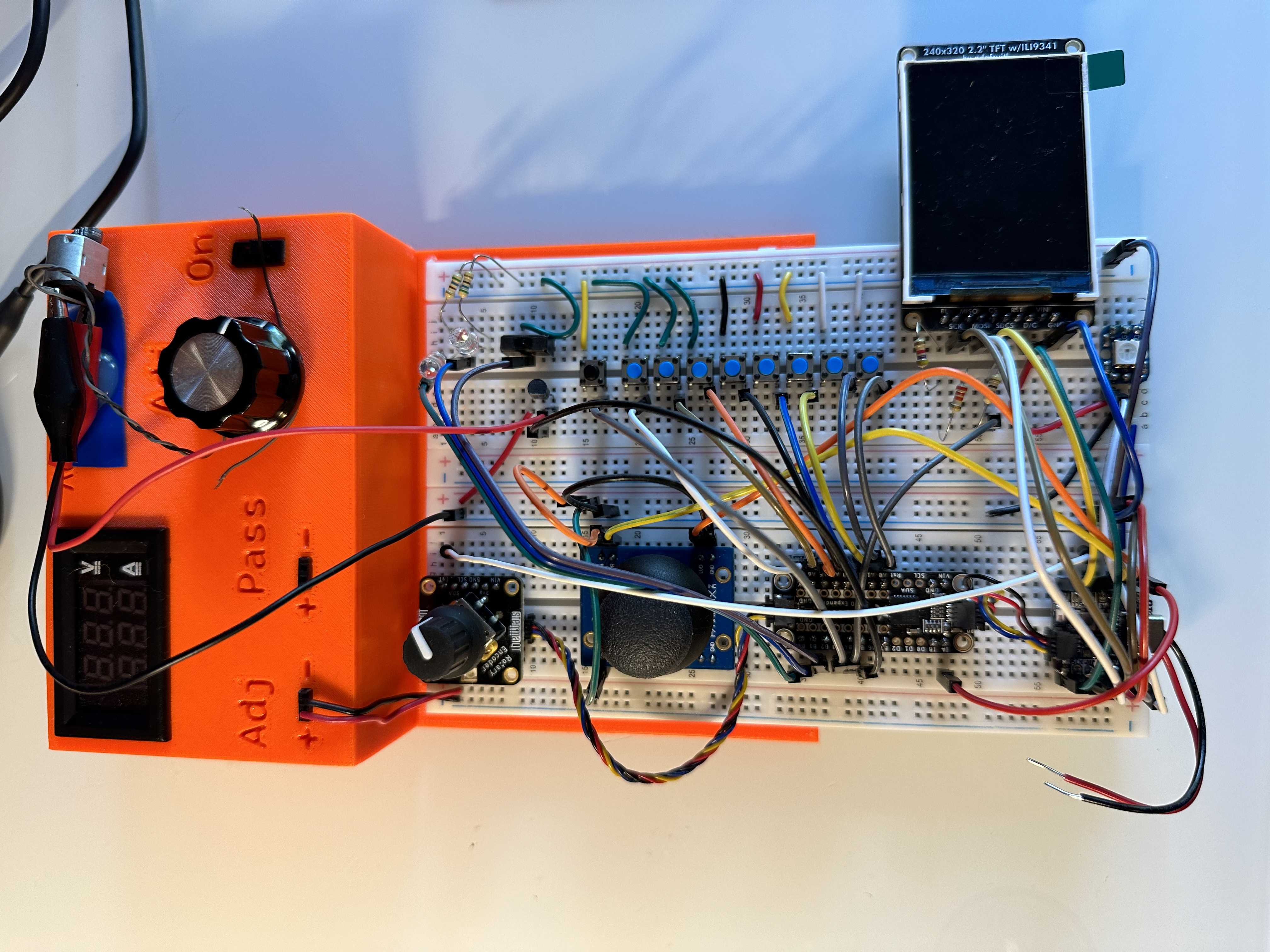

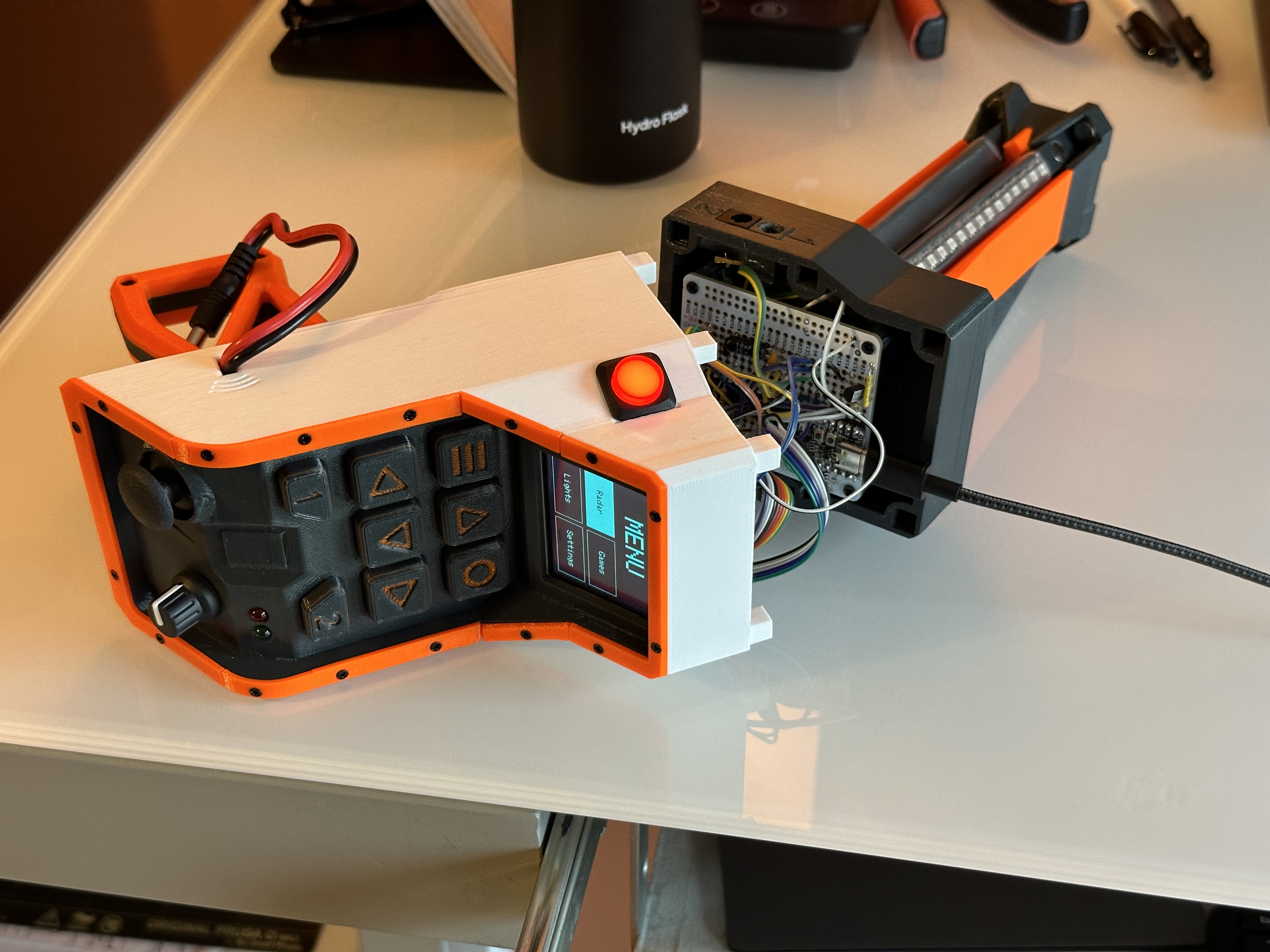

Media
Parts Info

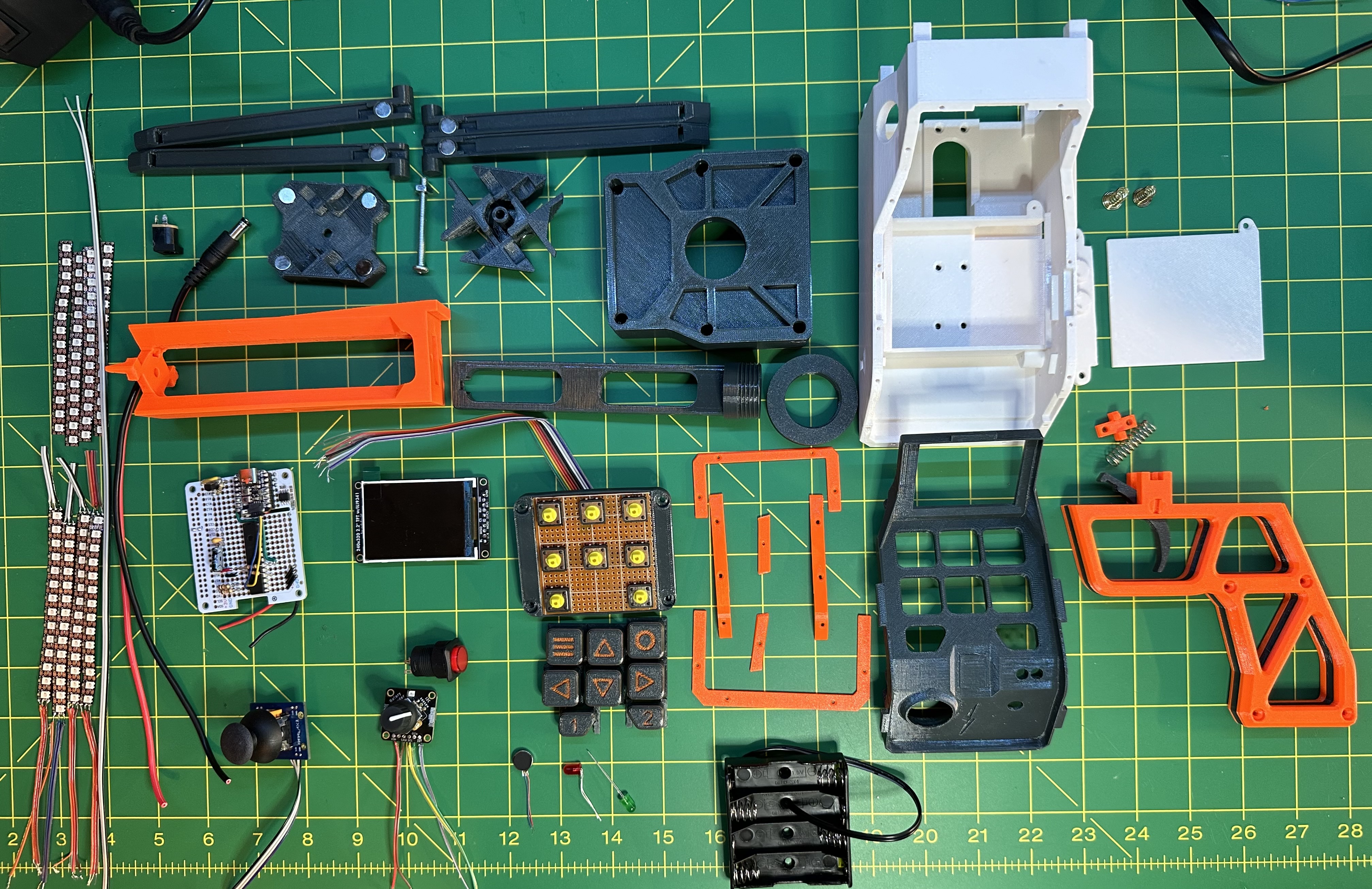

These are all of the parts that were bought to build this project. There were some odds and ends that I already owned and cannot find a good link for (plugs, wires, etc).
Filament
I used Prusa PETG for all of the filament. The colors used were Orange, White, and Anthracite Grey.
https://www.prusa3d.com/category/petg/
NeoPixels

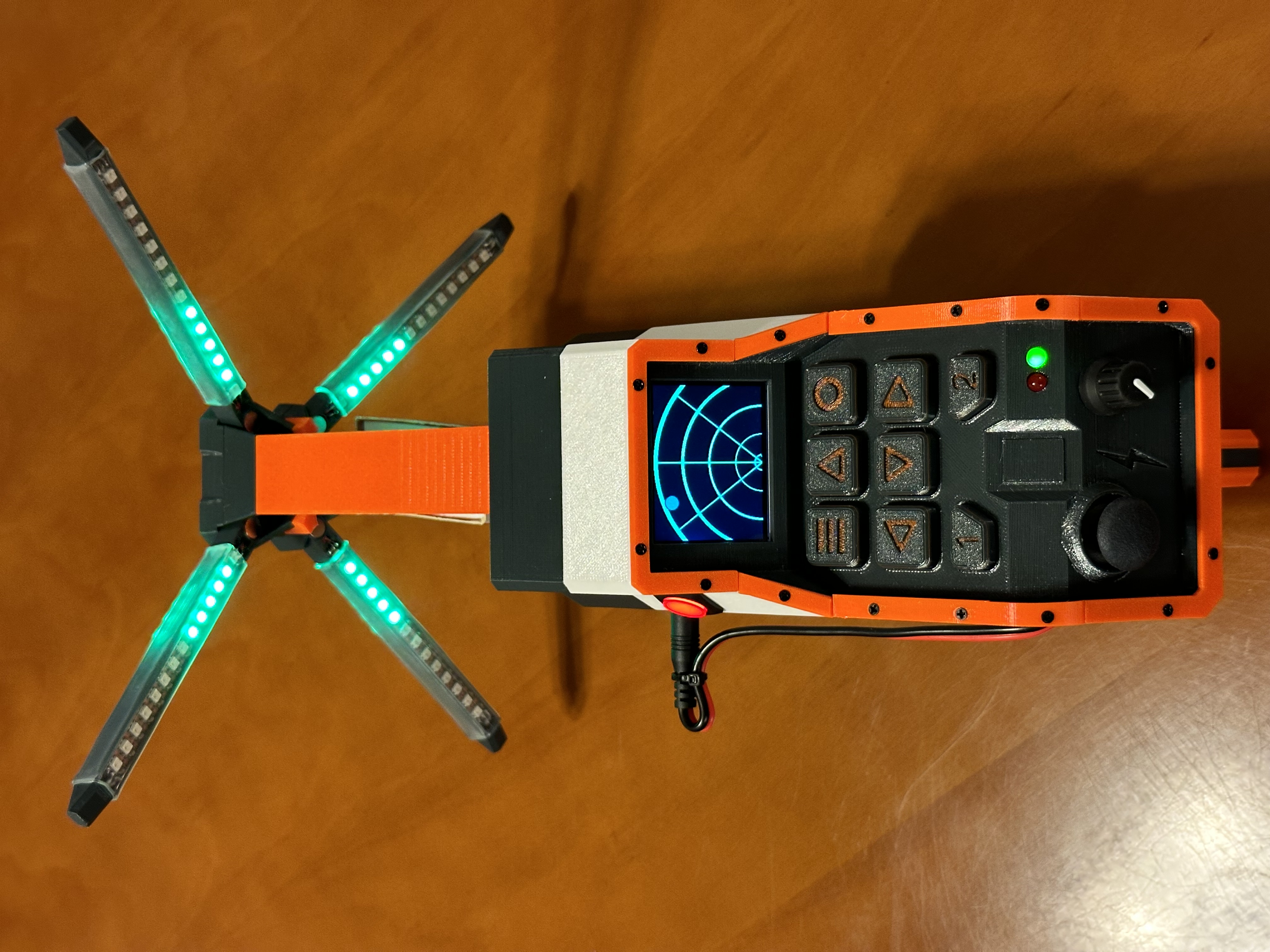

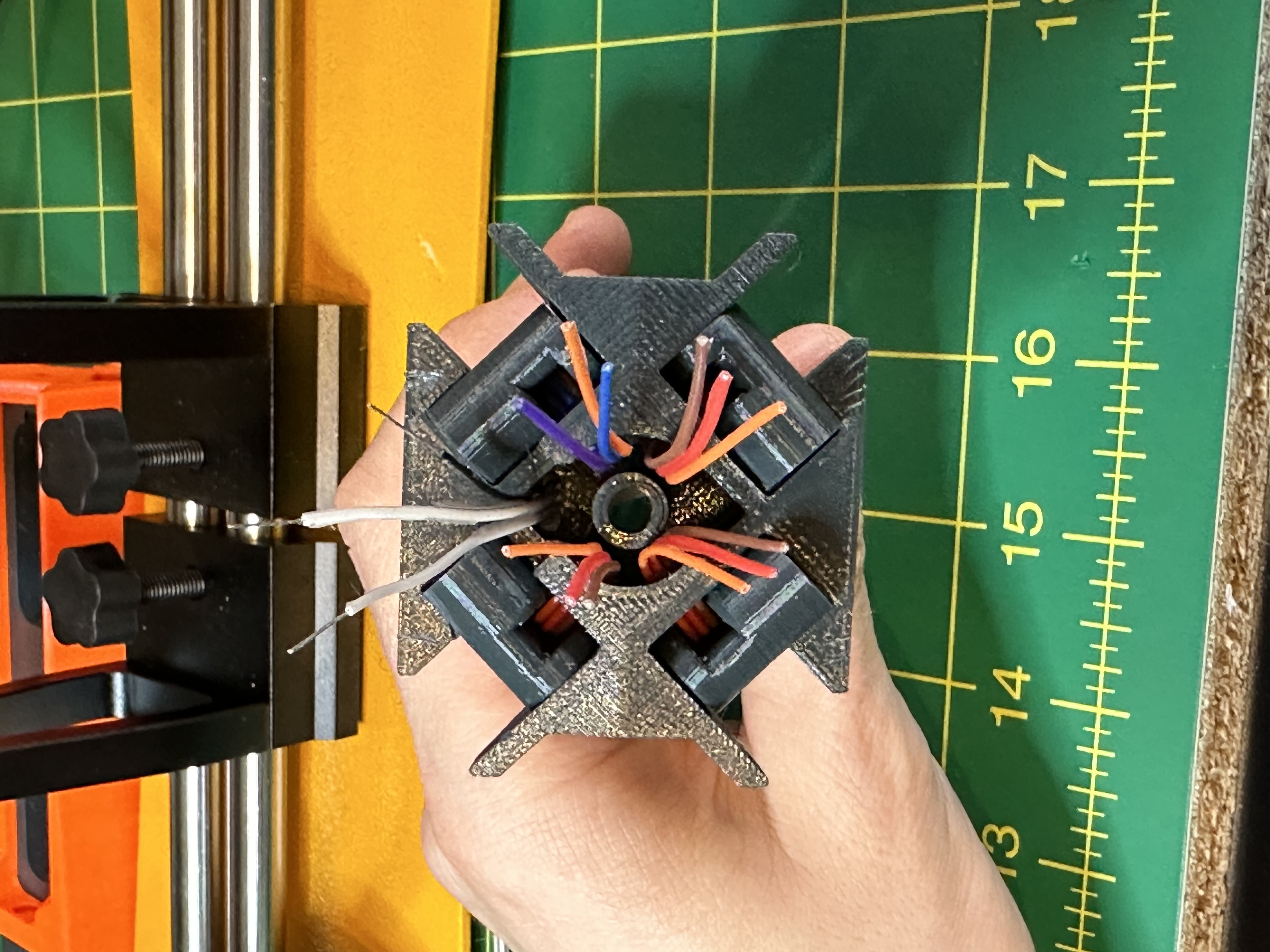

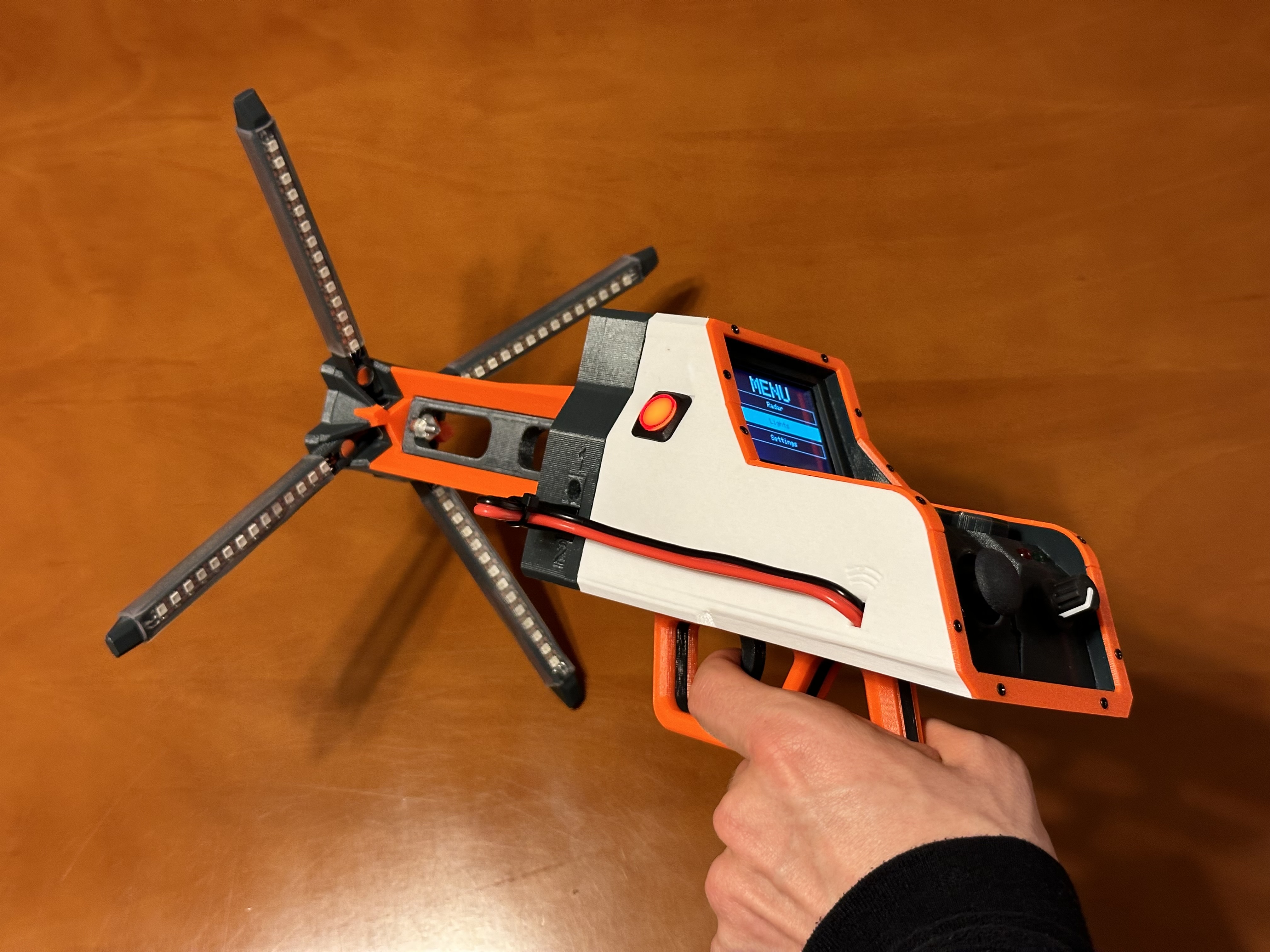

The four rods on the end are each covered with one 28-pixel strip. The rods are all wired in parallel.
https://www.adafruit.com/product/1506

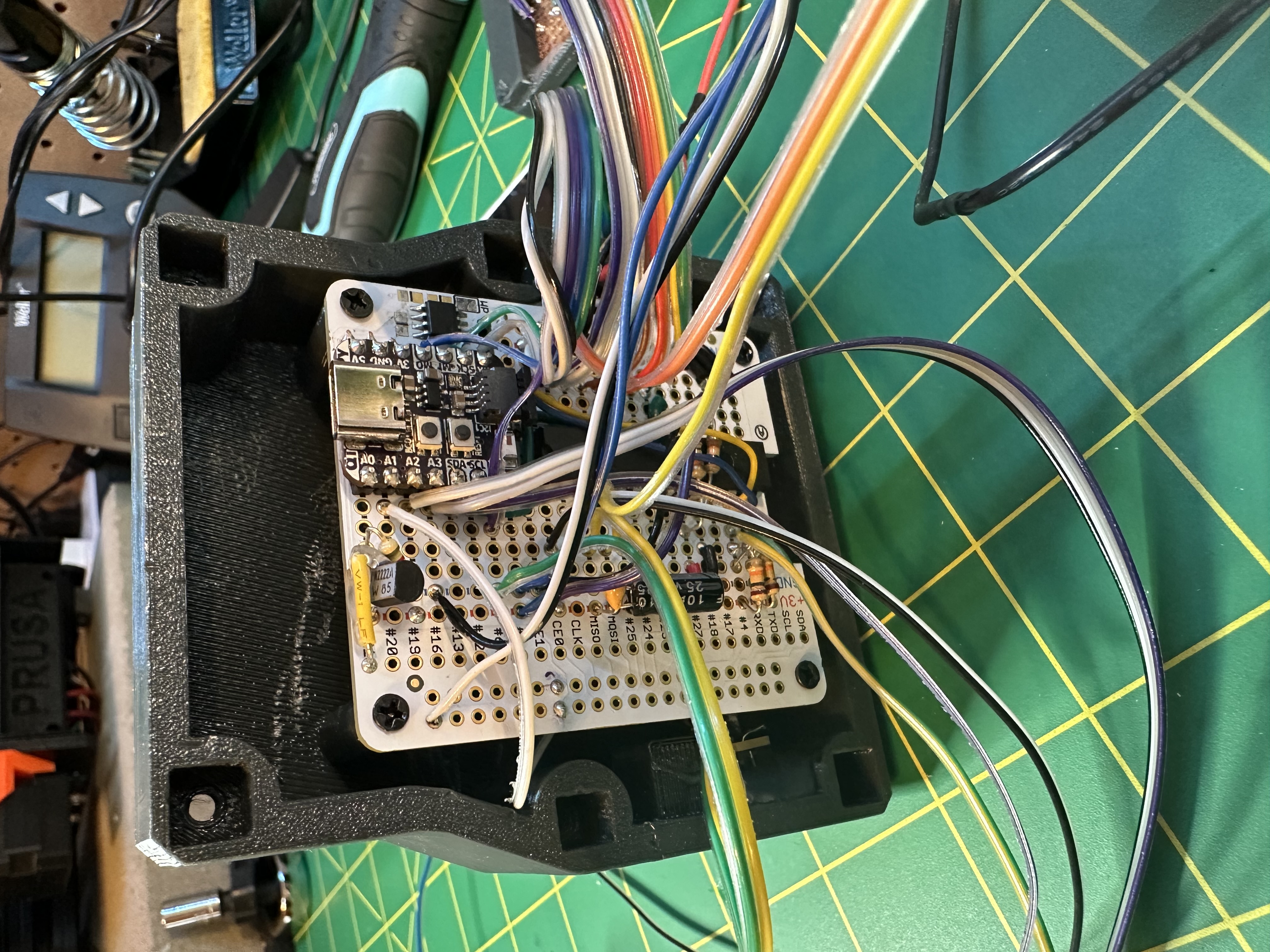

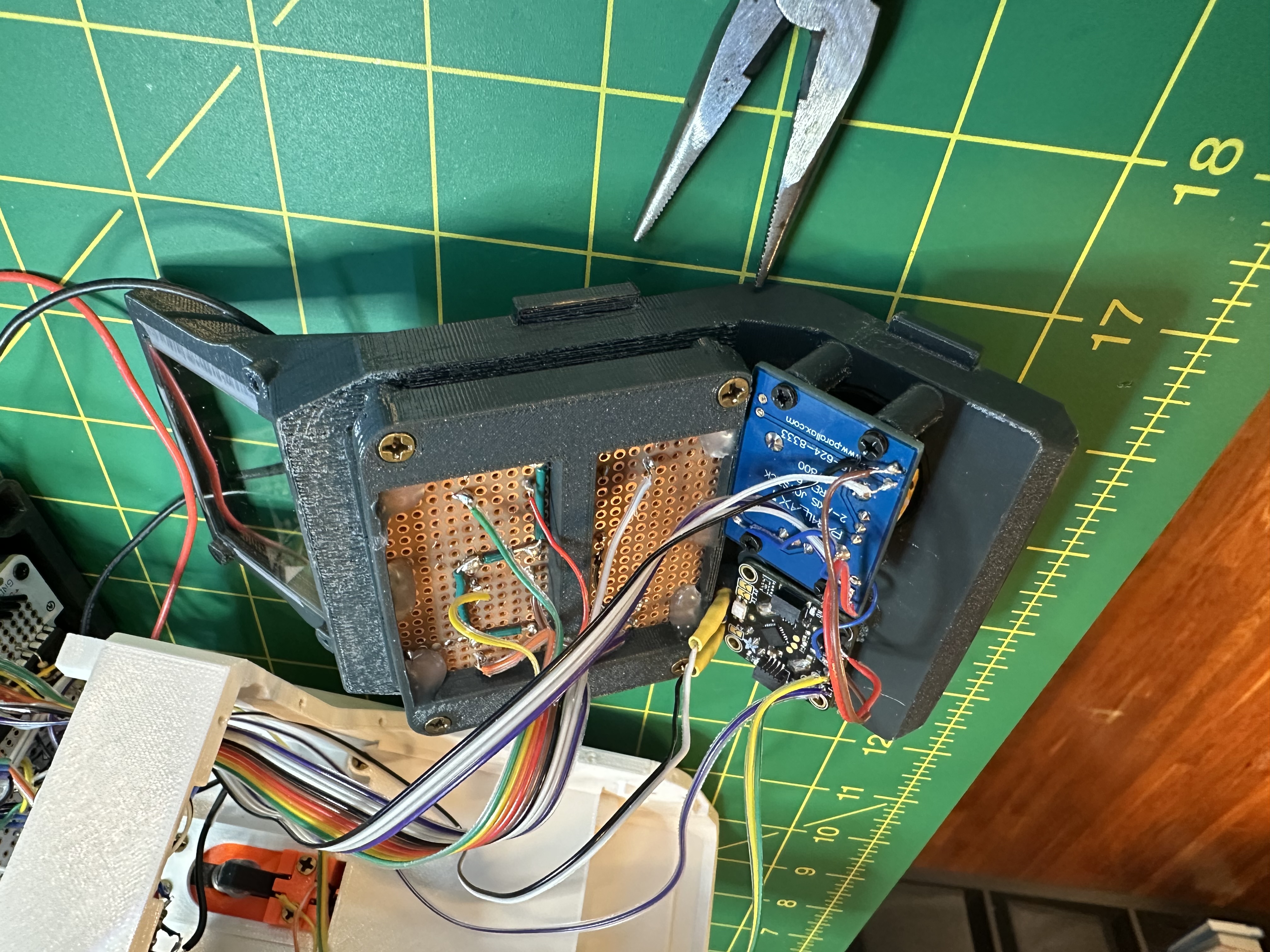

Perma-Proto Board

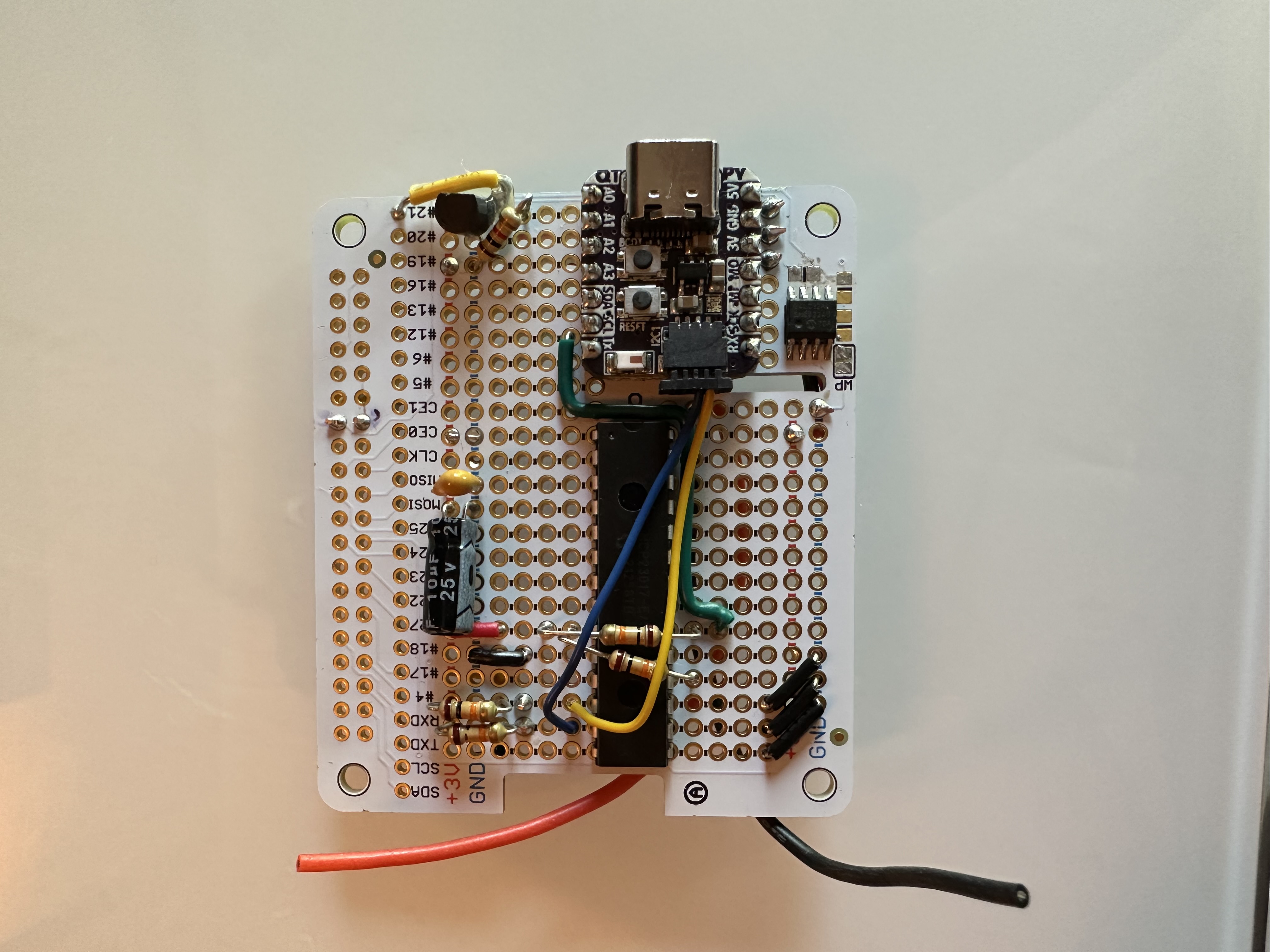

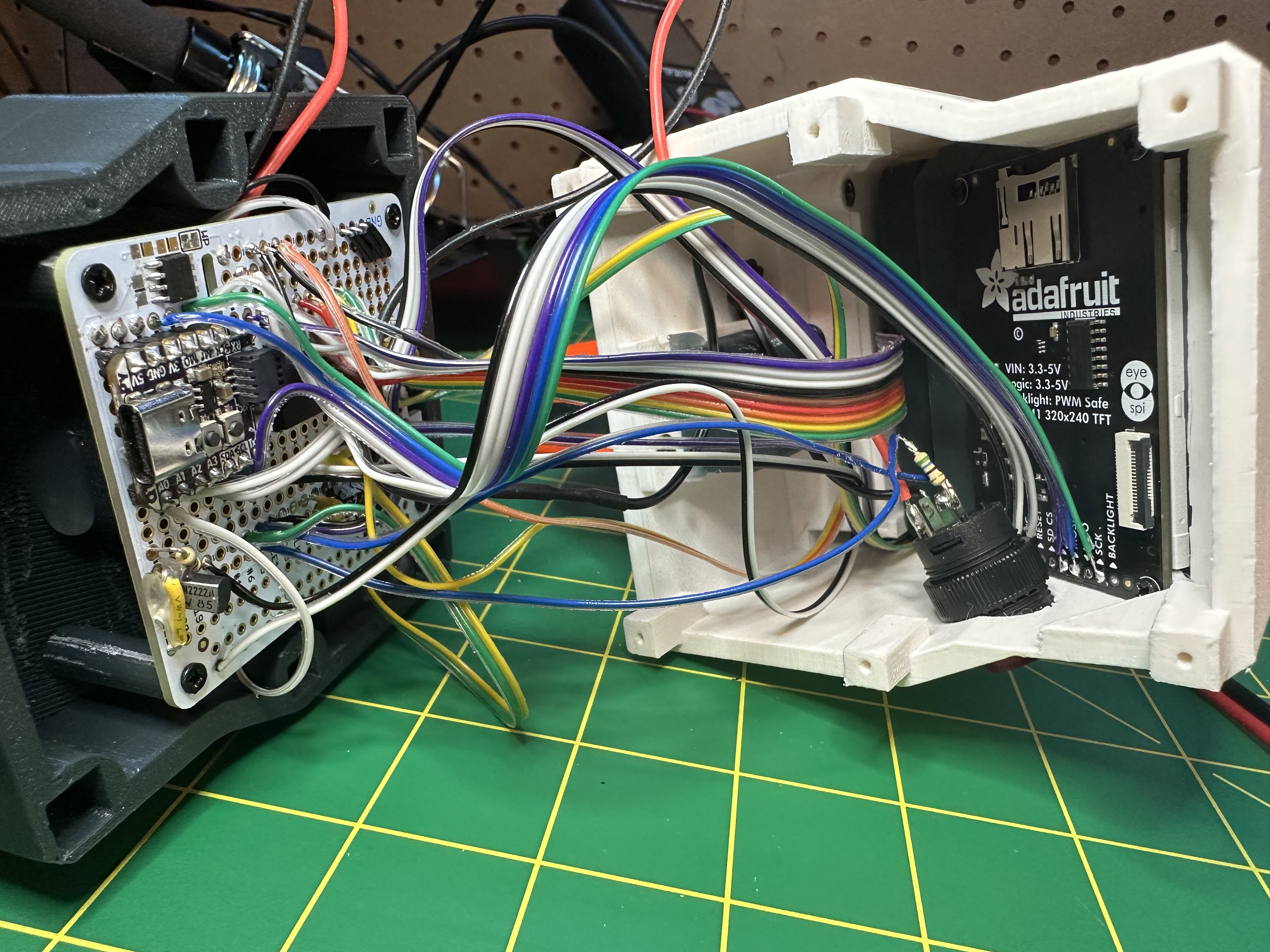

This board is meant to be used with a Raspberry Pi, but after looking at its size and layout, it proved perfect for mounting the QTPY ESP32-S2, MCP23017, and EEPROM.
https://www.adafruit.com/product/2310
QTPY ESP32 S2
The main MCU.
https://www.adafruit.com/product/5325
MCP23017
An I2C I/O expander. I likely could have used less inputs for the buttons, but this seemed simpler.
https://www.adafruit.com/product/732
EEPROM (24LC32AT-I/SN)
https://www.digikey.com/en/products/detail/microchip-technology/24LC32AT-I-SN/285049

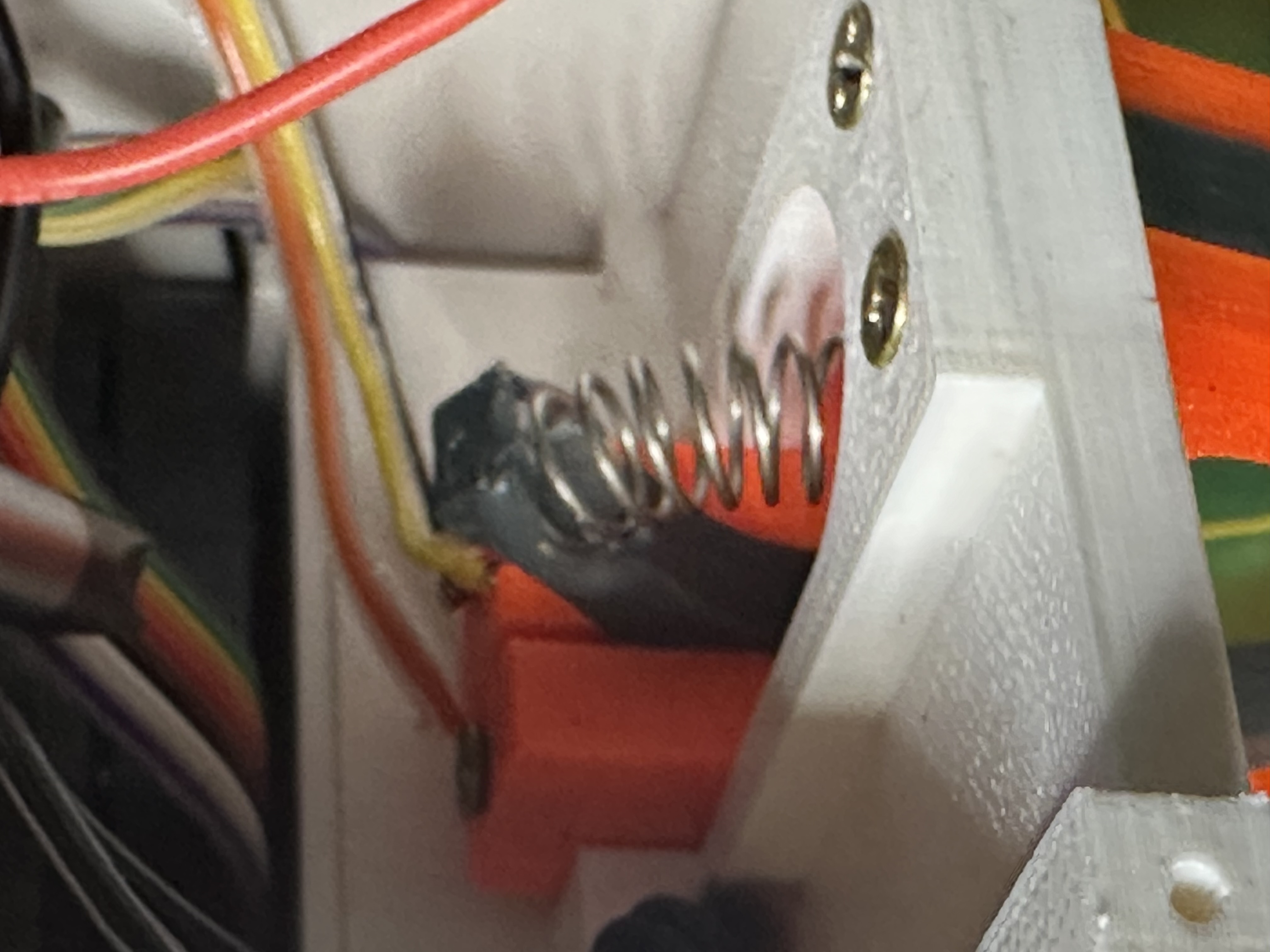

6mm Switch (trigger)
https://www.adafruit.com/product/367
12mm Switch (buttons)
https://www.digikey.com/en/products/detail/omron-electronics-inc-emc-div/B3F-4055/31799
Haptic Vibrator
Placed in the grip, just under the batteries.
https://www.adafruit.com/product/1201
2-Axis Joystick
https://www.adafruit.com/product/245
I2C Rotary Encoder Breakout
In hind-sight, this was more difficult to work with than just a standard rotary encoder. Reading and clearing interrupts over I2C was a lot of unnecessary overhead.
https://www.adafruit.com/product/4991
Rotary Encoder
https://www.adafruit.com/product/377
16mm Illuminated Latching Push Button
https://www.adafruit.com/product/1442
4 x AA Battery Holder with 2.1mm Plug
https://www.adafruit.com/product/3784

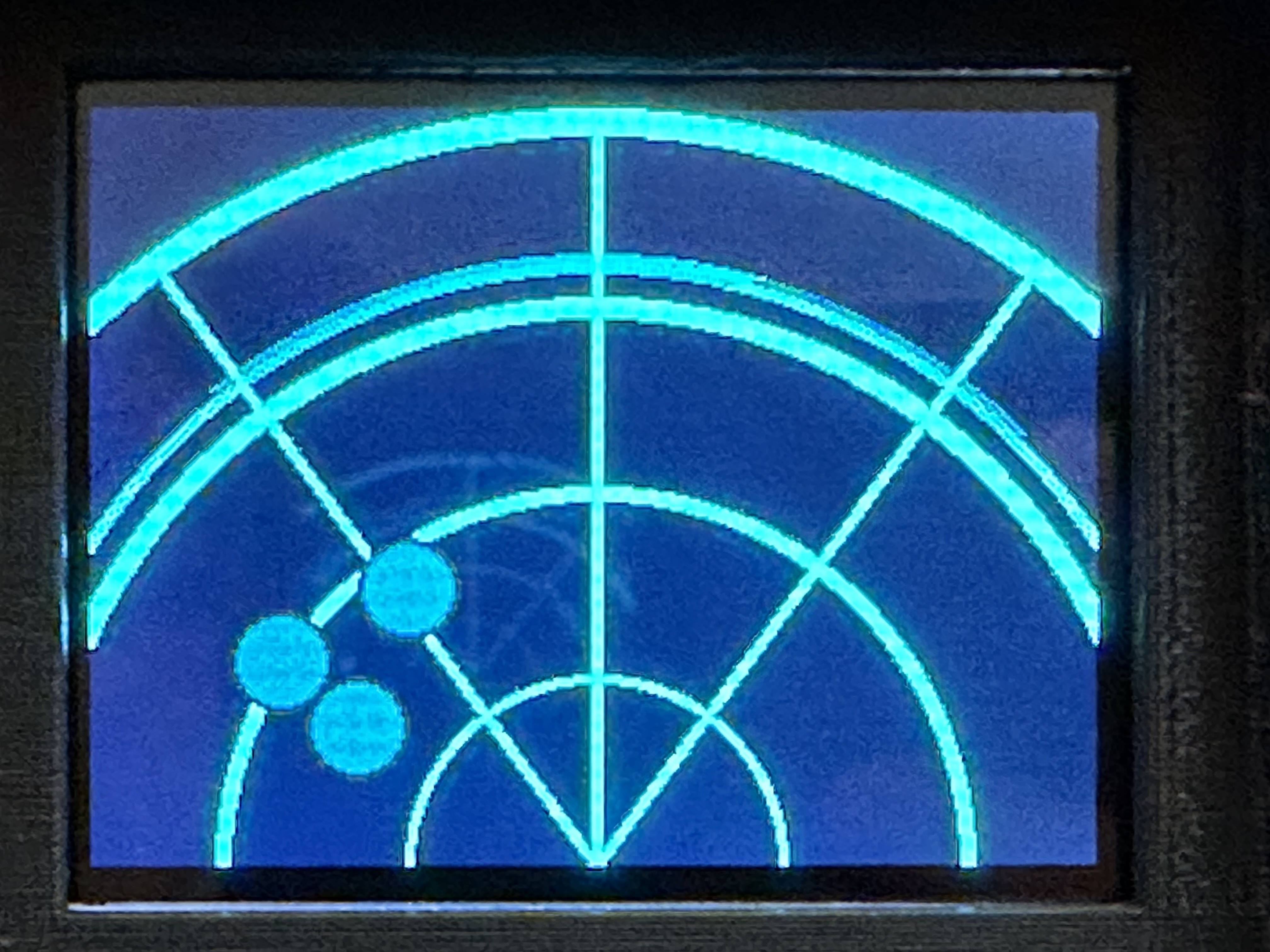

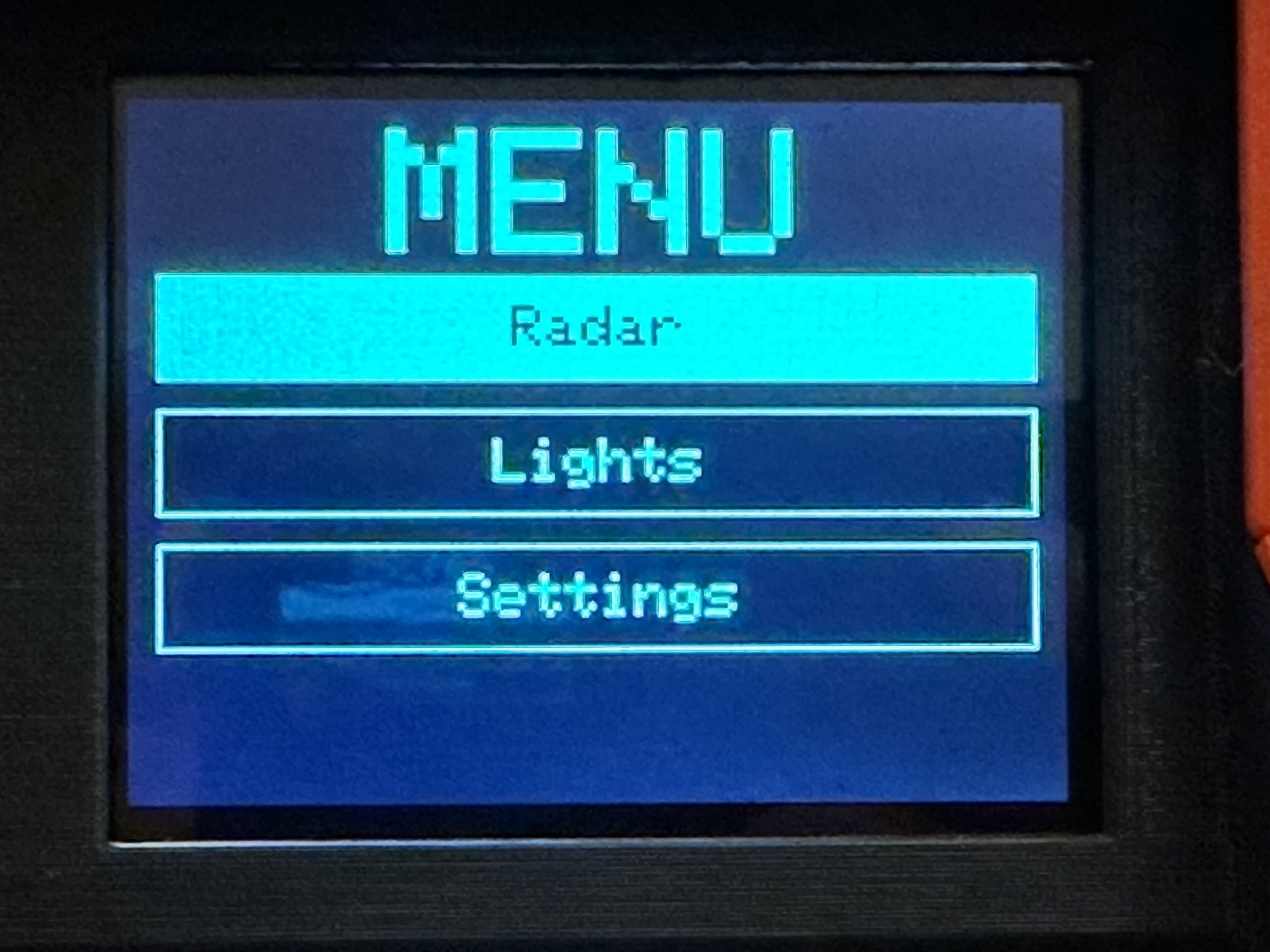

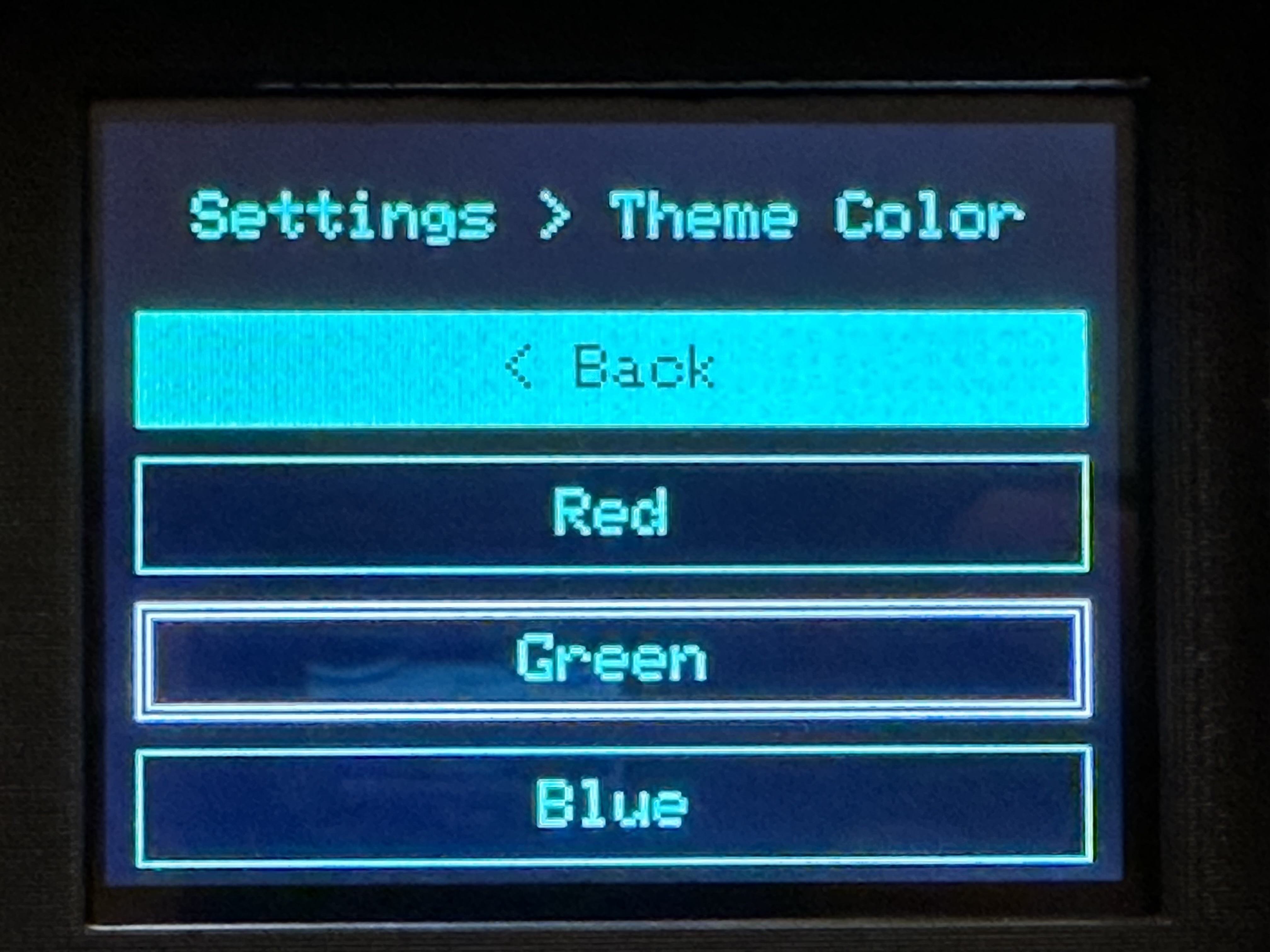

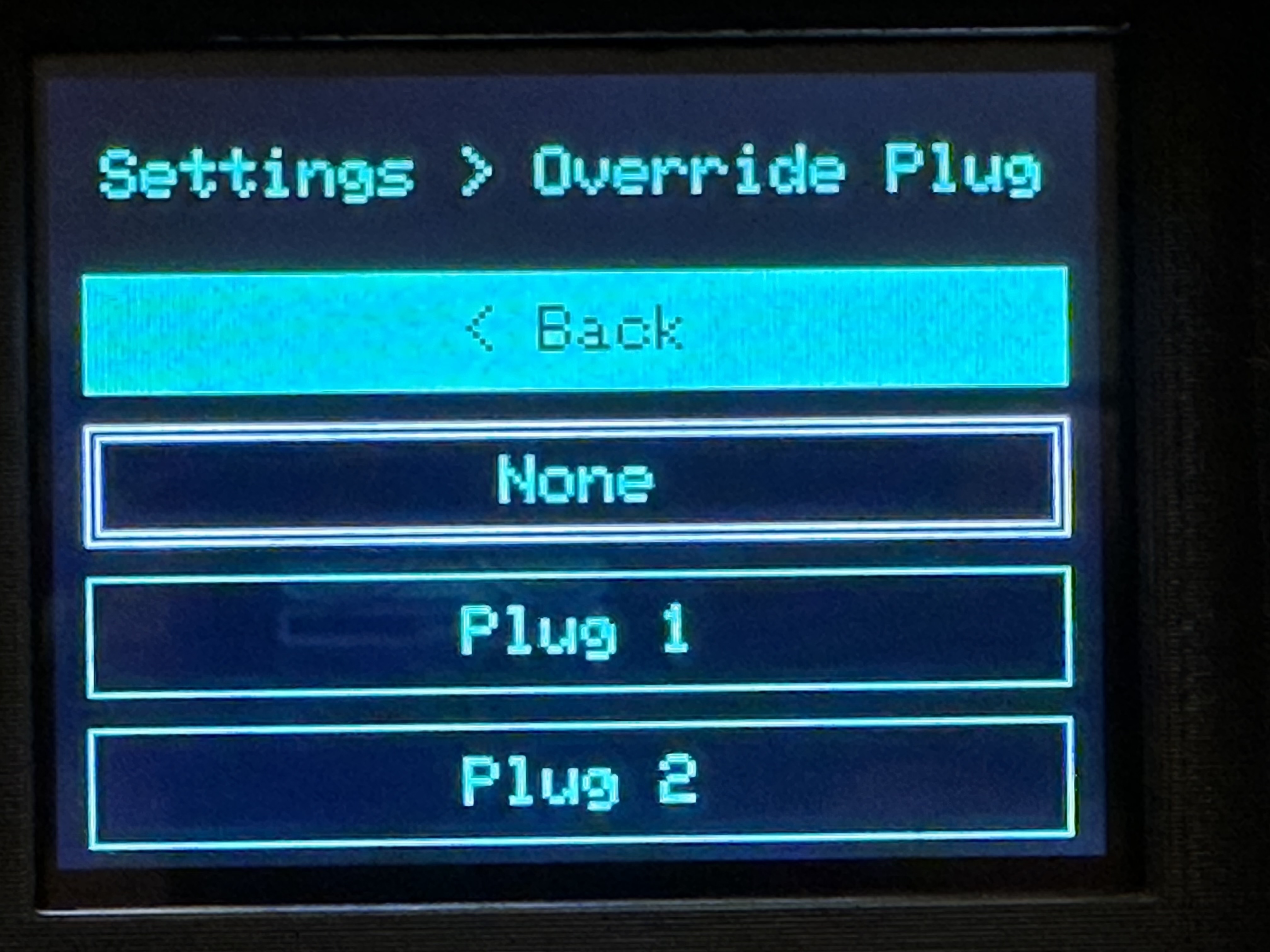

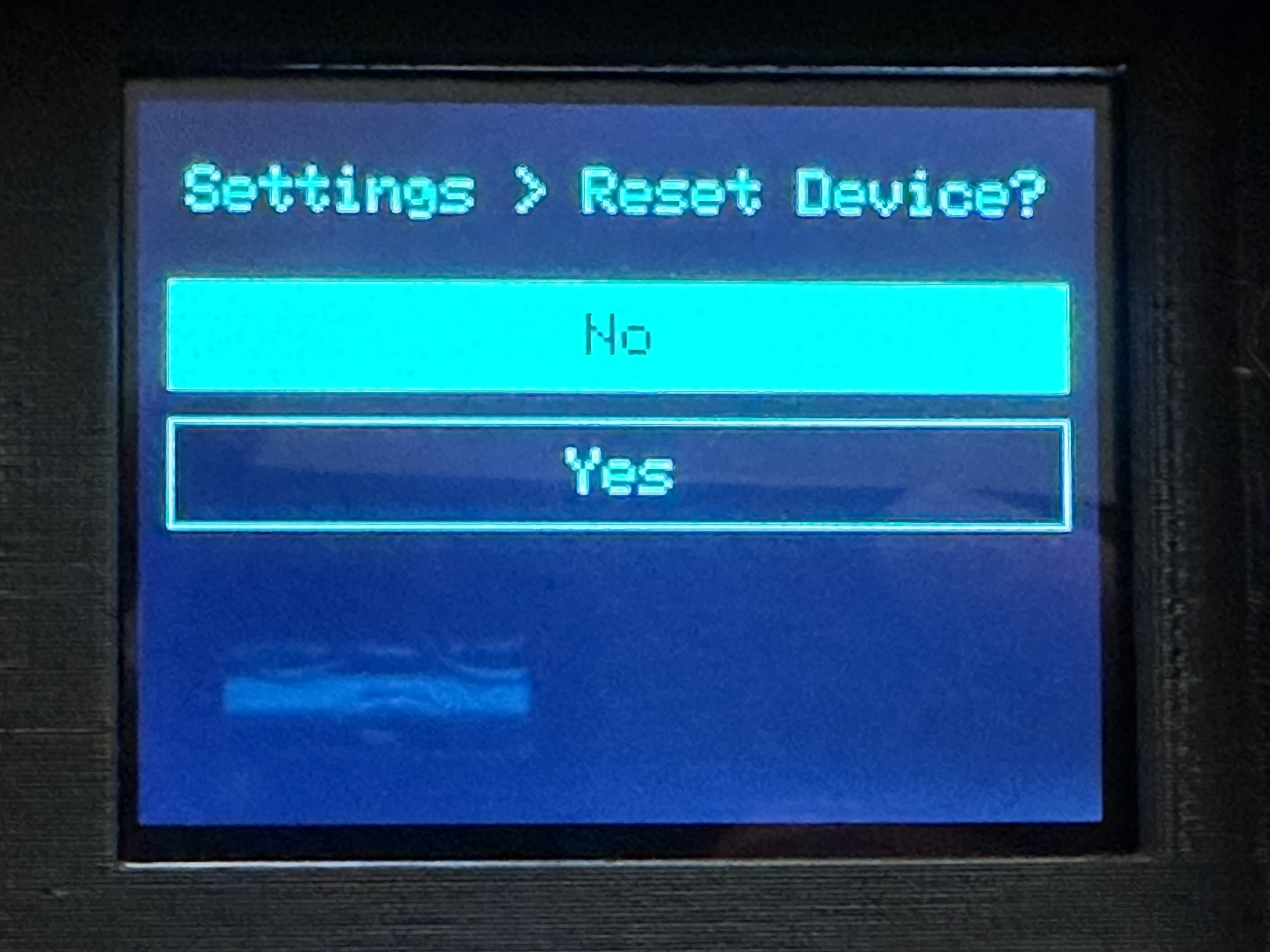

2.2" 18-bit color TFT LCD display
https://www.adafruit.com/product/1480
Other
Generic Capacitors, Resistors, BPJ transistors, springs, magnets, screws, LEDs.
3D Models
If you want to print the objects yourself, here are the 3D models in .step format.
Printable Parts
These represent the parts that are printed in PETG.
Non-printable Parts
These represent the electronics and other parts that cannot be printed. These were used to measure/build objects around.
Schematics

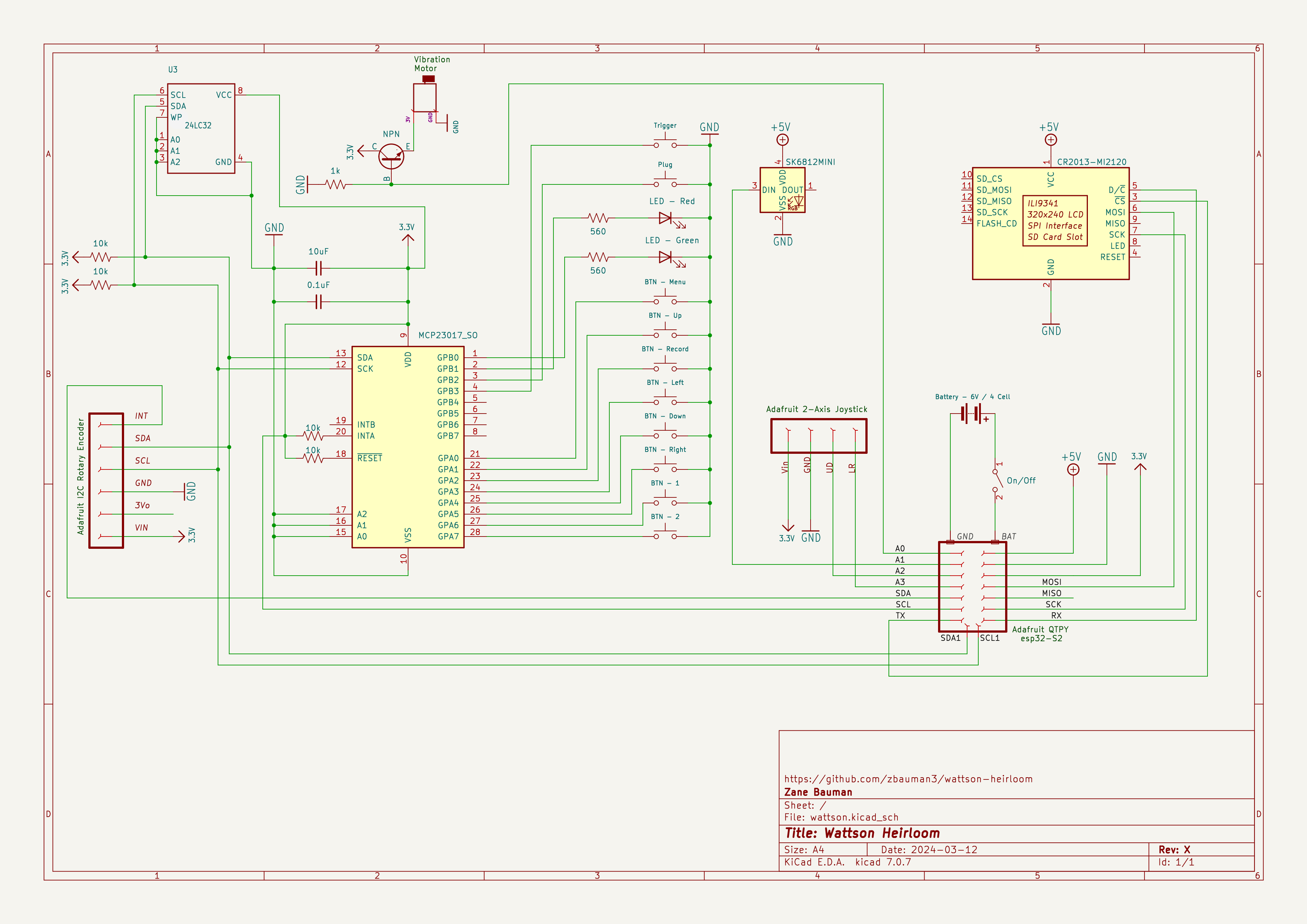

The schematics were built with KiCad.
